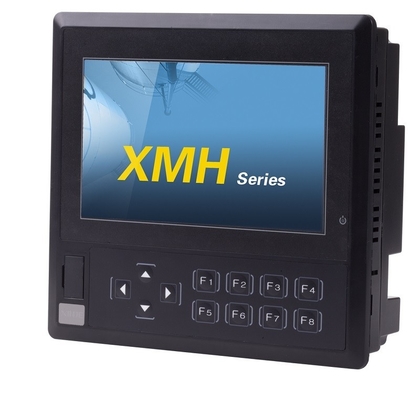

Mitsubishi Integrated PLC And HMI Touch Screen Panels With RS232 Port IP20

Mitsubishi Integrated PLC And HMI Touch Screen Panels With RS232 Port IP20

Quick Detail:

1. 16 I/O(input/output),

2. power supply AC220V,

3. XP series controller integrated PLC and HMI

4. 3.7 inch LCD touch screen

5. Two communication ports

6. PLC terminal is transistor output

Description:

1. Integrate PLC and HMI in one unit
2. Digital input: 8 points; digital output: 8 points
3. analog expansions: can connect 2 analog I/O boards
4. HMI screen is 3.7 inch touch screen
5. HMI LCD: 800*480 pixel; 65536 colors
6. Up to 26 function buttons on the operate panel
7. PLC part support high speed counter, high speed pulse, external interruption
8. PLC output terminals are transistor output

Specifications:

Applications:

XP series integrated PLC and HMI controller has the function of PLC and HMI. PLC function include high speed pulse output, AB phase count, interruption and so on. HMI has function keys and touch screen to control the PLC and other device. This model save space and easy to use. All the PLC and HMI part can be programming.

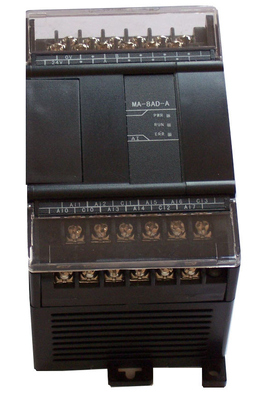

This picture is the analog module which can connect to the integrated PLC and HMI.
