Negative 128 * 32 Graphic LCD Display with blue backlight and serial port interface
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Dispaly Mode: | Graphic Lcd Display, COG | DOTS: | 128*32 |
|---|---|---|---|
| Controller IC:: | ST7565R | Drive Method:: | 1/33 Duty; 1/6 Bias |
| Active Area:: | 49.89*12.45 Mm | Interface: | Serial Port |
| Polarizer Type:: | Transmissive, Negative | Operating Temperature: | –20ºC TO +70ºC |
| Backlight Color: | Blue | ||
| High Light: | alphanumeric lcd display,graphic lcd module |
||

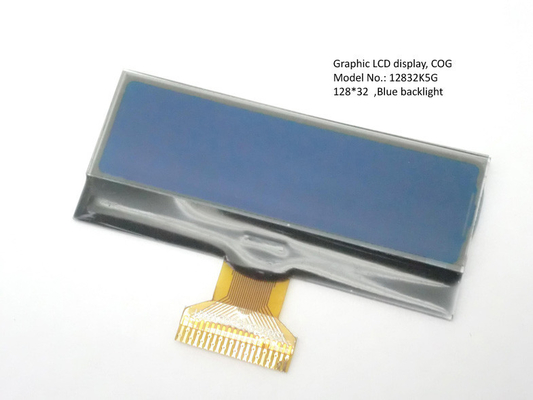

Transmissive, negative 128*32 Graphic LCD Display COG blue backlight
Specification:
| product name.: | graphic lcd module, COG |
| Model NO.: | 12832K5G |
| Resolution | 128*32 |
| LCD Outline Size: | 58.0*26.0*5.30 mm |
| View Area: | 52*14.5 mm |
| Active Area: | 49.89*12.45 mm |
| Display Type: | STN, Blue |
| Polarizer Type: | Transmissive, negative |
| View Direction: | 6:0 O'Clock |
| VDD | +3.3V |
| Drive Method: | 1/33 Duty; 1/6 Bias |
| Controller IC: | ST7565R |
| interface: | Serial port |
| Backlight type: | blue |
| Backlight Supply Voltage: | +4.1V |
| Operating Temp: | –20ºC TO +70ºC |
| Storage Temp: | –30ºC TO +80ºC |
Welcome to customize product!
we have a professional R&D team working for you !
12832K5G Drawing as below:
