Normally White 600Nits Sunlight readable lcd screen panel for Tablet PC , Laptop
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 12.1 Inch | Resolution: | 1024x768 |
|---|---|---|---|
| Brightness: | 600 Cd/m2 | Contrast Ratio: | 700:1 |
| View Angle(L/R/U/D): | 80/80/70/70 | Interface: | LVDS |
| Operating Temperature: | -30~80℃ | Storage Temperature: | -40-85℃ |
| High Light: | Chimei LCD display,tft lcd module |
||
Chimei 12.1 inch lcd module
Specifications:
| Module number | G121X1-L03 |
| Type | a-Si tft lcd |
| Size | 12.1 inch |
| Brand | CMI |
| Resolution | 1024X768 |
| Width:Height | 4:3 |
| Pixel Pitch | 0.240×0.240(mm) |
| Active Area | 249×187.5(mm) |
| View angle | R/L/U/D 80/80/70/70 (Deg) |
| Mode | TN, normally White, transmissive |
| LCD Surface | Glare, Hard coating(3H) |
| Number of Colors | 262K/16.2M(6 bit/ 6 bit + FRC) |
| Electrical Interface | LVDS(1ch, 6/8 bit) |
| Brightness | 600 cd/m2 |
| Contrast ratio | 700:1 |
| Outline dimension | 260.5x204x8.4mm(Typ.) |
| Panel weight | 510g(Typ.) |
| Backlight | WLED |
| Supply Voltage (V) | 3.3V |
| Response time | 5/11(ms) |
| Operate temperature | -30-80(°C) |
| Storage temperature | -40-85 (°C) |
| Application |
Special for industrial grade use.
|
We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.
Product Features:
-- WLED backlight & Backlight replaceable & LED Driver integrated;
-- High brightness 600nits;
-- Sunlight readable;
-- Long backlight life 50K(Min.) hrs;
-- Wide view angle;
-- Wide temperature;
-- 360 Deg. rotation view support;
-- 6/8 bit optional;
-- Glare Surface.

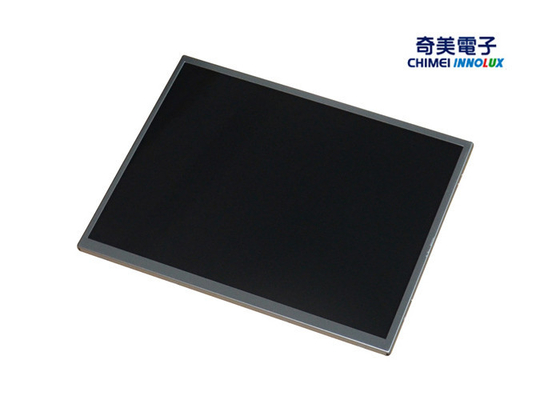

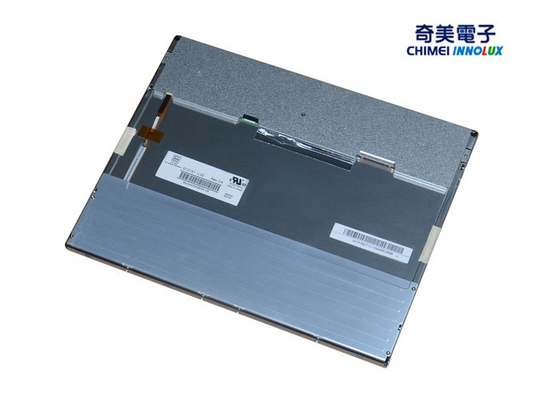

Product Show:
Our Features:
-- We're one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi five brands tft lcd modules in China from 2009, each piece of our products have quality promised;
-- TFT LCD Panel size range mainly focuz on 2.2" -- 24", and most of them are industrial grade panels;
-- All the panels are 100% original and brand new, no fake panels exists; Quality promised; And also provide 12 months of warranty; You can return any fake panels and charges by us. So from here you can enjoy the real panels which directly from original factory with full guarantee;
-- Original package and seal for batch orders. All the products are in original package from original factory directly, and all the packages have labels and serial number, you can check then;
-- We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly to avoid China Value Added Tax for you. So from here you can get more attractive price with more convenient delivery;
-- Our team will provide original factory technology service & professional support available for you 24 hours.
