Normally white Mitsubishi LCD Module Panel with Parallel RGB 420 cd / m2

large.img.alt
small.img.alt small.img.alt

Large Image :  Normally white Mitsubishi LCD Module Panel with Parallel RGB 420 cd / m2 Get Best Price

Product Details:
Place of Origin: Japan
Brand Name: Mitsubishi
Certification: RoHS,UL
Model Number: AA050ME01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: Mitsubishi original package
Delivery Time: within 1 week
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000pcs per week
Detailed Product Description
Size: 5 Inch Resolution: 800x480
Brightness: 420 Cd/m2 Contrast Ratio: 450:1
View Angle(L/R/U/D): 65/65/65/45(Deg) Interface: Parallel RGB
Operating Temperature: -20~70℃ Storage Temperature: -30-80℃
High Light:

mitsubishi lcd panel

,

mitsubishi lcd screen





AA050ME01 Mitsubishi industrial 5 inch tft lcd module



Specifications:



Module number AA050ME01
Type a-Si TFT LCD
Size 5 inch
Brand Mitsubishi
Resolution 800 X 480
Pixel Pitch 0.135 X 0.135 (mm)
Active Area 108 X 64.8(mm)
View angle R/L/U/D 65/65/65/45(Deg)
Mode TN, normally white, transmissive
LCD Surface Clear, Hard coating (2H)
Number of Colors 16.7M (8-bit)
Electrical Interface CMOS
Brightness 420 cd/m2
Contrast ratio 450:1
Outline dimension 118.5x77.8x3.5mm(Typ.)
Panel weight 70g(Typ.)
Backlight WLED
Power Consumption (W) 1.14W(Typ.)
Supply Voltage (V) 3.3V
Response time 25 (ms)
Operate temperature -20-70 (°C)
Storage temperature -30-80  (°C)
Applications



Industrial grade use





We also can provide total set such as lcd panel + touch panel + ad board + osd board + cables + Power Supply etc accessories for you, quality promised.









Product Features:

-- 180 Deg. rotation view supported;

-- Wide screen;

-- Wled backlight;

-- Ideal for industrial grade use.














Product Show:

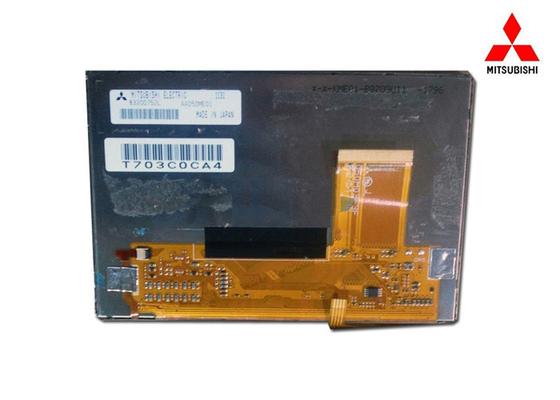

Normally white Mitsubishi LCD Module Panel with Parallel RGB 420 cd / m2 0

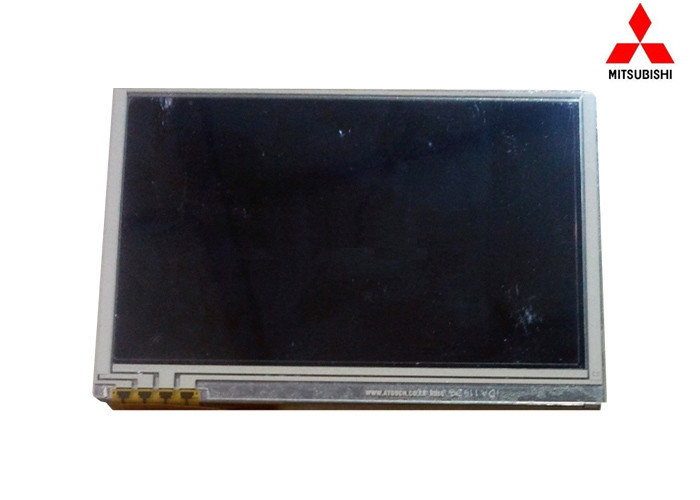

Normally white Mitsubishi LCD Module Panel with Parallel RGB 420 cd / m2 1






















Product Applications:

Normally white Mitsubishi LCD Module Panel with Parallel RGB 420 cd / m2 2



















Normally white Mitsubishi LCD Module Panel with Parallel RGB 420 cd / m2 3



About Hangzhou Leehon:



Hangzhou LEEHON Technology is one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 24 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc., and our features are:


1. Original quality guaranteed, any fake panels you can turn to us and charge by us;


2. Superior after-sale service, you buying products is not the end, it's the beginning of our service;


3. Panels are from original factory directly, many additional cost we can save for you. So the most competitive prices we can provide for you;


4. Small order quantity also accepted;


5. Offer 12 months of warranty;


6. Experienced staff can help you to solve your problem anytime;



7. We also have warehouse in Hongkong out of China mainland, so more convenient delivery we can provide for you.
