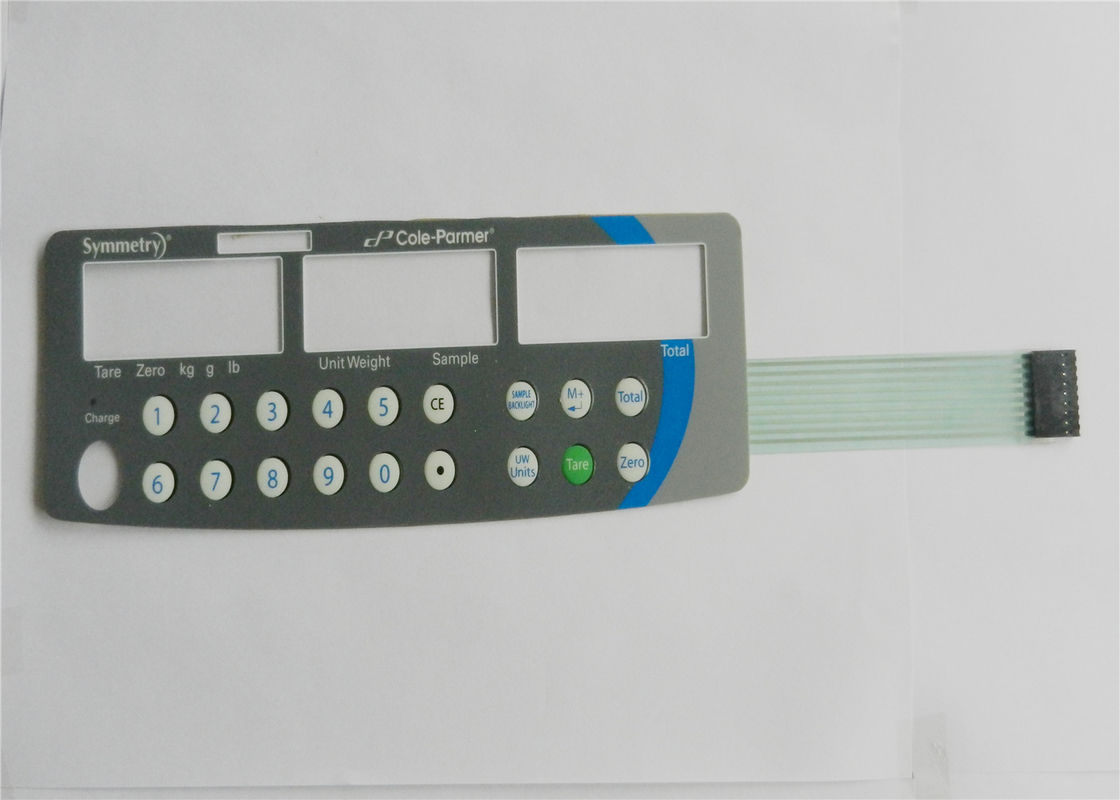

PET / PC Metal Dome Waterproof Membrane Switch With Texture Surface

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  PET / PC Metal Dome Waterproof Membrane Switch With Texture Surface Get Best Price

Product Details:
Place of Origin: Shenzhen
Brand Name: BEZ
Certification: ISO9001
Model Number: 390-9-1
Circuit: 0.125 PET or 0.125 flexible PCB keyboard
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
Detailed Product Description
High Light:

single membrane switch

,

waterproof toggle switch



PET / PC Metal Dome Waterproof Membrane Switch With Texture Surface



Quick Detail:



> Total thickness :0.9 mm
> Window : glossy


> Surface : matte> Graphic overlay material :  0.188  glossy PET
> Circuit material : PET

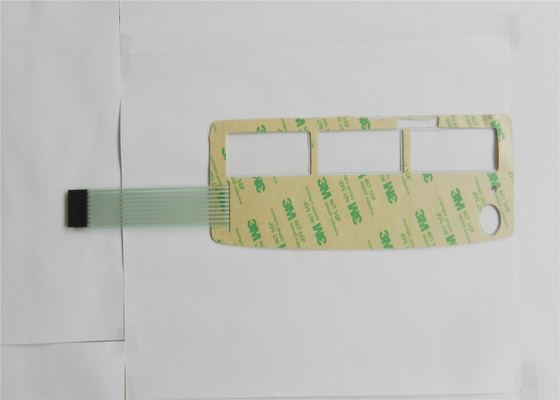

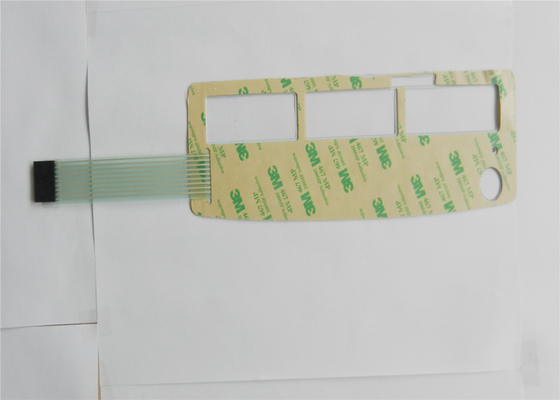

> Rear adhesive : 3M 467
> Button style : embossed





Description:


> Color : 4

> Led window : without
> Circuit crossing : yes
> Conductive side :top side conductive
> Tolerance:0.05 mm
> Water proof class : IP 67





Application:



TV remot control.
Air conditoner control panel
Microwave oven panel
Medical (Diagnostic and Therapeutic)
Exercise Equipment
Test and Measurement
Automotive
Industrial Automation Equipment
Home Therapy and Patient Monitoring





Specifications



1. LED metal dome membrane panel
2. PET/PC material
3. Waterproof
4. Scratch resistant



Beyond 15 years production experienc



1.Environment Conditions



Item

Value

Operating Temperature & Humidity

-20°C - +70°C,< 90 %RH

Storage Temperature & Humidity

-30°C - +70°C,< 90 %RH

ESD protection

air +/-10KV, touching +/-5KV

Falling ball(1.1mm tempered glass)

50g(ball),1m

Static pressure(1.1mm tempered glass)

25KG

Surface hardness

>7H

Transmittance

>85%

Using durability (Pen Sliding test)

10 Million times





2. Electrical characteristics:



Item

Value

Supply voltage

2.8V~5V

Current consumption

Active Mode

Normal Mode

Sleep Mode

Power Supply Ripple

100mv P-P max

Supports a maximum resolution

2560X1408

Interface

I2C,USB

response time

20ms

Power Supply rise time

8ms Max

Linearity

< 1.5%





3.Touch function:



Item

Value

Drag, circle, slide, soft keys

OK

Multi-touch

Support up to 10 fingers

Gesture recognition

Enlarge, reduce, Rotate

keys analyzed additionally

Sliders, wheels, fierce action, long press



Type of Switch:



Non tactile
graphics
Tactile with stainless steel domes
Tactile with poly domes on the circuit

Notice: We have the capacity to provide you membrane switches with other special requirements, such as Shielding, Windows/Lens Coating, Embossing, Embedded LEDs, UV glossy/matte/textured, etc.

A: What’s the lead time for sample and mass order  ?
B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..

A: How long is your quality guarantee period
B: in usually,3 months.
A:Great, TKS. Do it.
