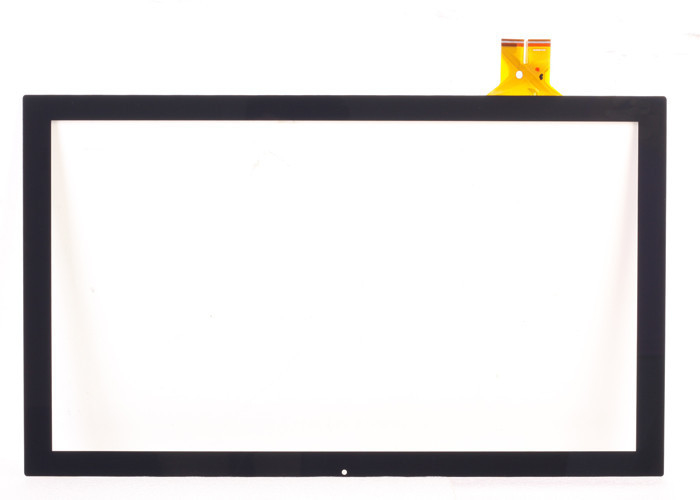

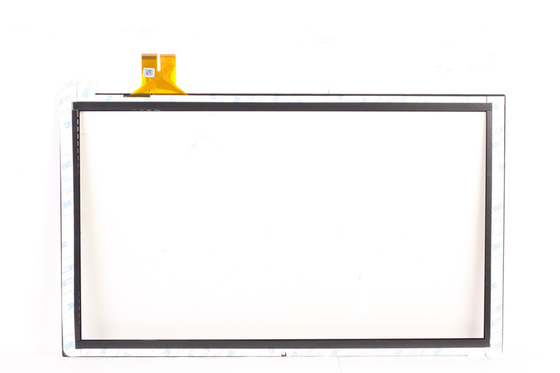

PG Structure Multi LCD Touch Panel 21.5 Inch capacitive touchscreen
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Outline Dimension: | 525 X 312mm | Active Area: | 478.2 X 269.8mm |
|---|---|---|---|
| Structure: | PG | Connection: | COB |
| Touch: | 10 Points | IC Project: | SIS9251 + 9203 |
| High Light: | lcd capacitive touchscreen,multi touch panel |
||
PG Structure Multi LCD Touch Panel 21.5 Inch capacitive touchscreen
Quick Detail:
- Cover PET + ITO Glass + Adhesive + FPC
- IC Project: SIS9251 + 9203
- Work Voltage: 2.8V-3.3 V
- Multi Touch:10 Points
Main Material:
IC: from Taiwan, America etc.
Glass: from Japan, America, Germany etc.
Film: from Japan, Korea etc.
Touch PanelSpecification:
|
Model No. |
SCT-PB1-004672A |
| Structure | PG |
| Size | 21.5 Inch |
| Multi Touch | 10 Points |
|
Active Area |
478.2 x 269.8mm |
|
Outline Dimension |
525 x 312mm |
| ITO Glass | 1.8mm |
| Cover PET | 0.188mm |
| Adhesive | 0.165mm |
|
Total Thickness |
2.3±0.1mm |
|
Surface Hardness |
3H |
| Work Voltage | 2.8V-3.3V |
| Connection | COB |
| IC Project | SIS9251 + 9203 |
|
Transparent |
≥87% |
|
Operating temperature |
-20℃～70℃, ≤90%RH |
|
Storage temperature |
-30℃～80℃, ≤90%RH |
Main Structure:
- GG structure
GG structure is cover glass plus sensor glass technology solution, with high transmittance, good effect of protecting scratch and also harder than PG structure.
- OGS structure
OGS is one glass solution, directly form ITO conducting film in the protective glass and use the sensor technology. It has the advantage of the simple structure, light, thin and good transmitting etc.
- PG structure
PG structure uses one PET film plus sensor glass solution. Mature process technology greatly reduces the failure rate and cost. It has the same level weight with OGS structure.
Application:
- Car navigation (GPS)
- Education electronics
- Household appliance
- Bank system
- Smart home system
- Industrial equipment
- Tablet PC (MID)
- Smart phone
- Ultra book
- All In One (AIO)
Environment Condition:
|
Item |
Value |
|
working environment |
-20℃～70℃, ≤90%RH |
|
storage environment |
-30℃～80℃, ≤90%RH |
Electric Characteristics:
|
Item |
Value |
|
working voltage |
DC2.8~3.3V |
|
insulation resistance |
＞20M, DC25V |
|
working current |
12mA~14.5mA |
|
response time |
≤16ms |
Mechanical Characteristics:
|
Item |
Value |
|
finger contact area |
Φ≥5mm |
|
transmittance |
≥87% |
Reliability Condition:
|
Item |
Condition |
|
high temperature and humidity |
60℃, 90%RH, 96H |
|
high temperature storage |
70℃/120H |
|
thermal shock |
-20℃(0.5H)~+70℃(0.5H) by 100 cycles |
Assembly Precautions:
- Do not exert extra force to touch panel.
- Since touch panel is transparent and clear, make sure to wear fingerstall or glove before touching. Be careful of your hands and other parts from injury at handling by glass corners.
- When handling, make sure to hold the touch panel borders not center parts to avoid dirt to touch panel. Do not lift touch panel by tail to avoid tail loosen.
- When installing and assembling, do not lift tail with heavy force to avoid tail peeling off touch panel.
- Do not stick or mount other parts on the tail, such as additional film or metal plate. As it will exert extra force to tail tip and cause tail loosen.
- Please don't pull FPC with force from side to side, because the FPC tension will make FPC burst.
- If there is air groove on touch panel, when design product structure, make sure no liquid and powder near the air groove.
- In order to avoid heavy stress to touch panel surface, make sure to keep 0.2mm-0.5mm assembling gap between touch panel and case.
