Professional 240 * 128 Graphic STN LCD module screen with UC1698 controller
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Dispaly Mode: | Graphic Lcd Display | Resolution: | 240*128 |
|---|---|---|---|
| Controller IC:: | UC1698 | Drive Method:: | 1/128 Duty; 1/12 Bias |
| Active Area:: | 73.18*39.02 Mm | Interface: | Parallel Port |
| Polarizer Type:: | Transmissive, Negative | Operating Temperature: | –20ºC TO +70ºC |
| Backlight Color: | Blue | ||
| High Light: | alphanumeric lcd display,serial lcd display |
||

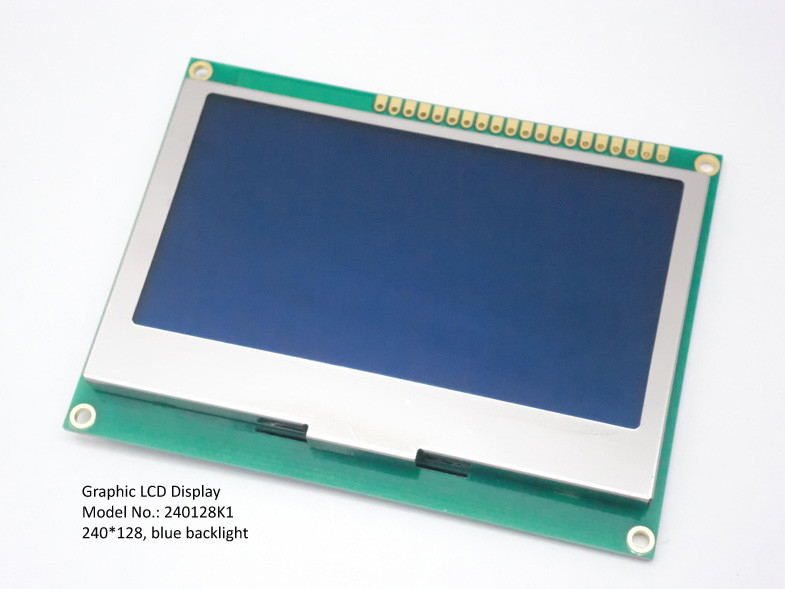

240*128 Graphic LCD Display blue backlight with UC1698 controller
Specification:
| product name.: | graphic lcd display |
| Model NO.: | 240128K1 |
| Resolution | 240*128 |
| LCD Outline Size: | 92.6*69*11 mm |
| View Area: | 80*42.7 mm |
| Active Area: | 73.18*39.02 mm |
| Display Type: | STN |
| Polarizer Type: | transmissive, negative |
| View Direction: | 6:0 O'Clock |
| VDD | +3.3V |
| Drive Method: | 1/128 Duty; 1/12 Bias |
| Controller IC: | UC1698 |
| interface: | parallel port |
| Backlight type: | blue |
| Backlight Supply Voltage: | +3.3V |
| Operating Temp: | –20ºC TO +70ºC |
| Storage Temp: | –30ºC TO +80ºC |
Welcome to customize product!
we have a professional R&D team working for you !
Our factory is founded in Year 2009, located in Nanjin China. Our thousands of products cover LCD / LCM/ COG including 122*32,128*64,128*128,160*160,192*64,240*128,320*240 etc
240128K1 Drawing as below:
