Professional lcd display with touch screen 400 cd / m2 , LVDS LCD Panel Module
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 10.4 Inch | Resolution: | 800x600 |
|---|---|---|---|
| Brightness: | 400 Cd/m2 | Contrast Ratio: | 700:1 |
| View Angle(L/R/U/D): | 80/80/70/70 | Interface: | LVDS |
| Operating Temperature: | -20~70℃ | Storage Temperature: | -40-80℃ |
| High Light: | Chimei LCD display,Industrial lcd screen |
||
Chimei 10.4 inch tft lcd display 800x600 SVGA LVDS Specifications:
| Module number | G104S1-L01 |
| Type | a-Si TFT LCD |
| Panel Size | 10.4 inch |
| Brand | CMI |
| Resolution | 800X600 |
| Width:Height | 4:3 |
| Pixel Pitch | 0.264×0.264 (mm) |
| Active Area | 214.8×162.7(mm) |
| View angle | R/L/U/D 80/80/70/70 (Deg) |
| Mode | TN, normally white, transmissive |
| LCD Surface | Anti-glare, Hard coating(3H) |
| Number of Colors | 262K/16.2M(6 bit/6 bit+FRC) |
| Electrical Interface | lvds(1ch, 6/8-bit) |
| Brightness | 400 cd/m2 |
| Contrast ratio | 700:1 |
| Outline dimension | 243x184x7.0mm(Typ.) |
| Panel weight | 355g(Typ.) |
| Backlight | WLED |
| Power Consumption | 4.8W |
| Supply Voltage (V) | 3.3V |
| Response time | 5/11 (ms) |
| Operate temperature | -20-70 (°C) |
| Storage temperature | -40-80 (°C) |
| Application |
Special for industrial grade use
|
We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.
Product Features:
-- WLED backlight & LED driver integrated & Backlight replaceable;
-- Wide view angle;
-- 6/8 bit optional;
-- Anti-glare surface;
-- 180 Deg. rotation view support.

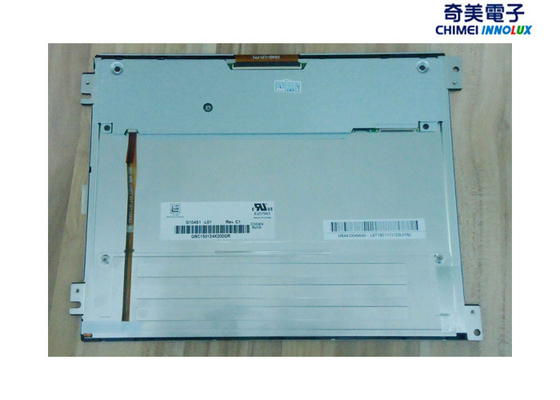

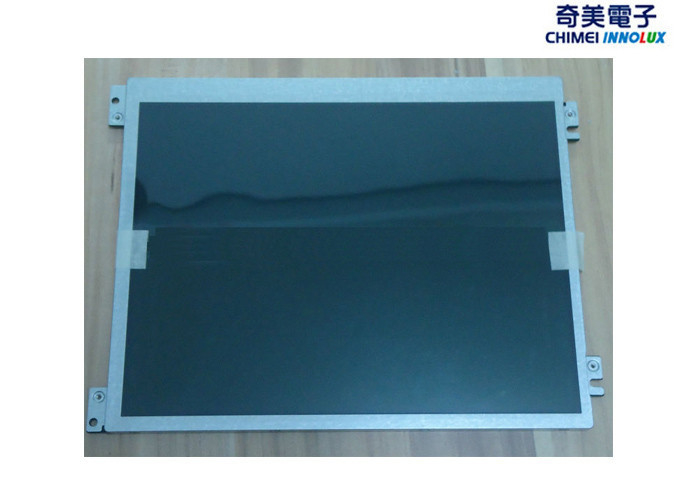

Product Show:
