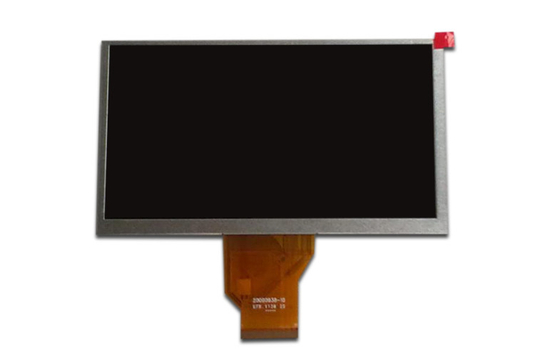

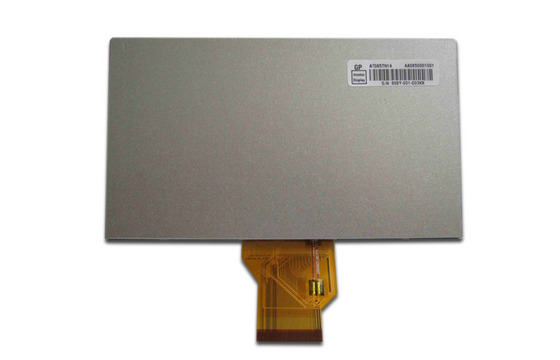

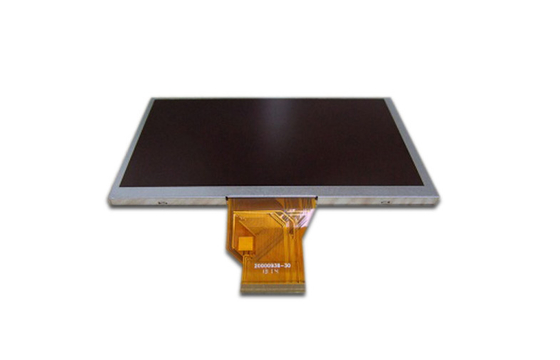

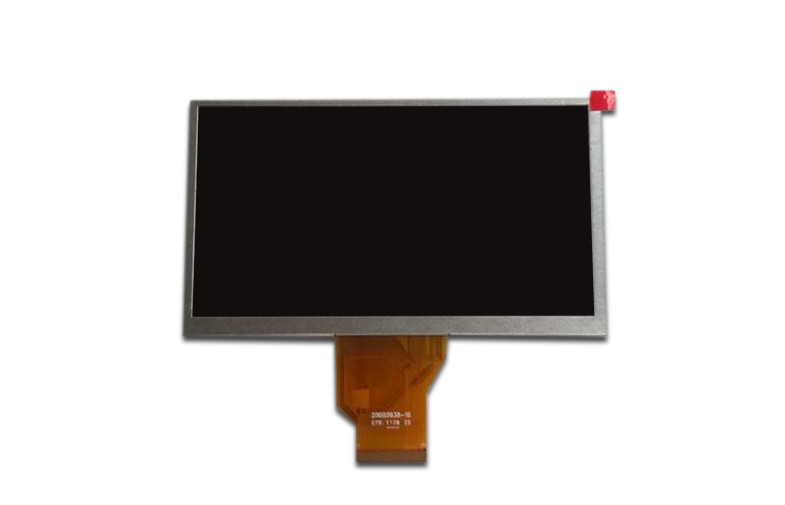

RGB vertical stripe 6.5" tft lcd panel 800x480 500nits AT065TN14

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  RGB vertical stripe 6.5" tft lcd panel 800x480 500nits AT065TN14 Get Best Price

Product Details:
Place of Origin: TaiWai
Brand Name: Innolux
Certification: CE ,ROHS
Model Number: AT065TN14
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Get the latest price
Packaging Details: Original packing
Delivery Time: 2-3 weeks
Payment Terms: T/T in advace .western union
Supply Ability: 200,000pcs/month
Detailed Product Description
Lcd Size: 6.5 Application: Visual Doorbell, Digital Camera, Tablet Pc, DVD Player
Backlight: LED Brand Name: Innolux
Brightness: 500nits Color Pixel Arrangement: RGB Vertical Stripe
Interface: 50pin FPC Product Name: LCD Panel
High Light:

Innolux LCD Panel


small lcd screen


RGB vertical stripe 6.5" tft lcd panel 800x480 500nits AT065TN14



Quick Detail:


1. Lcd size:6.5"

2. Resolution: 800X3(RGB)X480

3. Brightness: 500nits

4. Weight: 126.9

5. Backlight:LED





industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.





Screen Size 6.5"
Aspect Ratio 16:9
Display Mode Transmissive
Resolution 800X3(RGB)X480
PPI ( Pixel per inch ) 150
Module/Panel Size(mm) 155.2 x 89.4 x 5.5
Active Area(mm) 143.4 x 76.704
Dot Pitch(mm) 0.05975(W)X0.1598(H)
Viewing Angle (Tpy.)θT/θB/θL/θR 50/70/70/70
Viewing direction 6 O'Clock
NTSC 50%
Luminance(nits) 500
Contrast Ratio 500
Response Time(ms) 25
Weight (g) 126.9
Interface 50pin FPC,
Parallel 24bit RGB
Operation Temperature( ℃) -30~85
Storage Temperature (℃) -30~85
HTHH.(op) 60℃,90% RH



Competitive Advantage:

+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed

HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad

With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.


Innolux 4.3


<img alt="Innolux 4.3" tft="" lcd="" module="" 480*272="" at043tn24="" v.7"="" data-cke-saved-src="/photo/tft-lcd-panels/editor/20140526143309_90082.jpg" src="/photo/tft-lcd-panels/editor/20140526143309_90082.jpg" style="width: 600px; height: 386px;">
