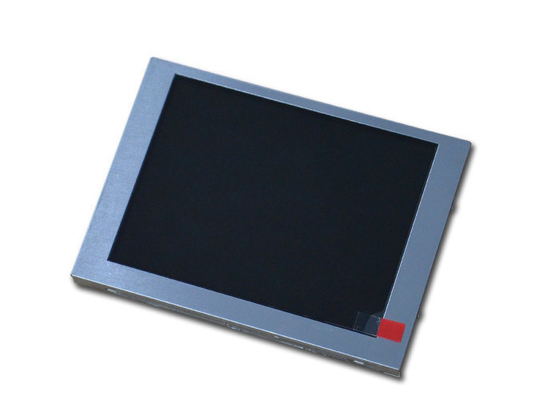

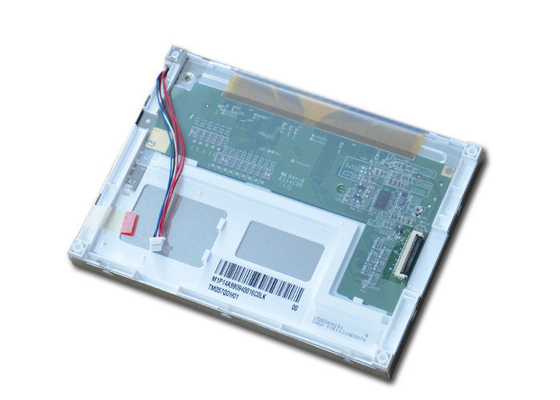

RoHS Tianma lcd wall panel 5.7 inch TM057QDH01 , 640 * 480 LED backlight monitor display

Large Image : RoHS Tianma lcd wall panel 5.7 inch TM057QDH01 , 640 * 480 LED backlight monitor display Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	TIANMA
Certification:	RoHS
Model Number:	TM057QDH01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD20-100 / pc
Packaging Details:	Tianma original package
Delivery Time:	1-4 weeks
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10000pcs per week

Contact Now

Detailed Product Description

Size:	5.7 Inch	Resolution:	640X480
Brightness:	400 Cd/m2	Contrast Ratio:	600:1
View Angle(L/R/U/D):	70/70/70/60	Interface:	RGB (1ch, 6 Bit)
Storage Temperature:	-30~85℃	Display Mode:	TN, Normal White
Backlight:	Work Over 50k Hours
High Light:	tianma lcd display , tianma lcd module

Tianma 5.7 inch LCD module TM057QDH01 , 640*480 WLED backlight lifetime 50K hours

Specifications

Module number	TM057QDH01
Resolution	640(RGB) x 480
Pixel Pitch	0.180x0.180 (mm)
Active Area	115.20x86.40 (mm)
View angle	R/L/U/D 70/70/70/60(Deg)
Mode	TN
LCD Surface	Anti-Glare, 3H
Number of Colors	262K
Electrical Interface	RGB 18 bits
Brightness	400cd/m2
Contrast ratio	500:1
Outline dimension	144.0x104.6x12.8(mm)
Backlight	WLED
Supply Voltage (V)	3.3V
Response time	20(ms)(Typ.)
Operate temperature	-20-70 (°C)
Storage temperature	-30-85 (°C)
Package	Tianma original package; 40pcs/carton; Carton size: 530x350x250mm; Weight: TBD
