Rom Low Cost Bluetooth Module

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Rom Low Cost Bluetooth Module Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Rayson
Certification: BQB Certified
Model Number: BTM605
Payment & Shipping Terms:
Minimum Order Quantity: 3k
Price: USD2~USD2.1
Packaging Details: Tray or Reel
Delivery Time: Sample 1week , MP 4-6Week
Payment Terms: TBD
Supply Ability: 500K/Month
Detailed Product Description
High Light:

stereo audio bluetooth module

,

Low power bluetooth module



Rom Low Cost Bluetooth Module





Product Description

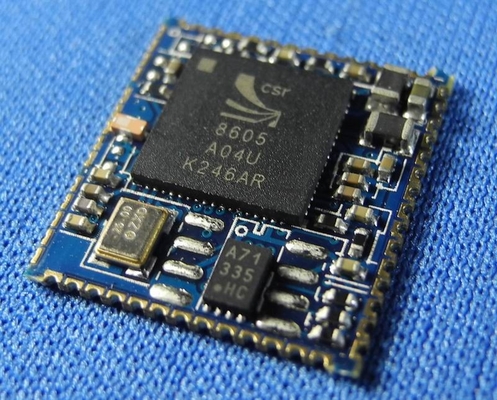

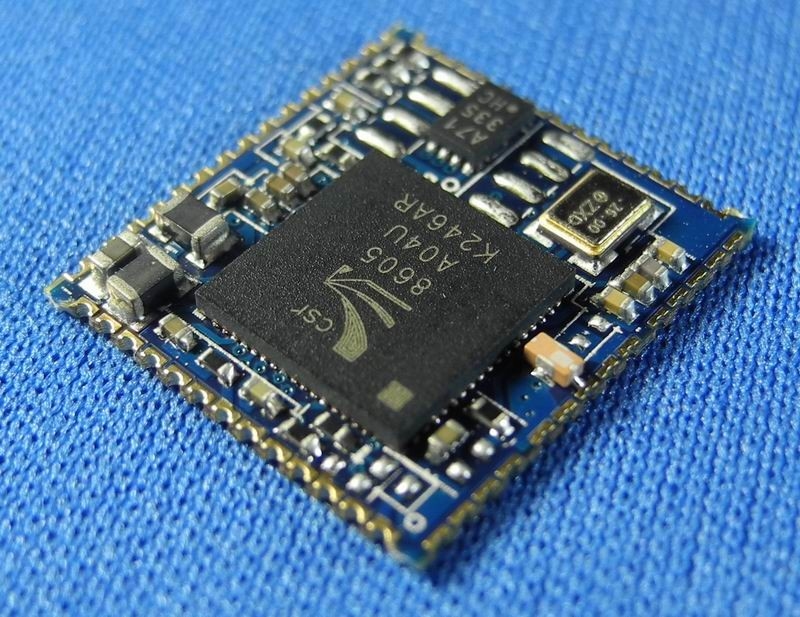

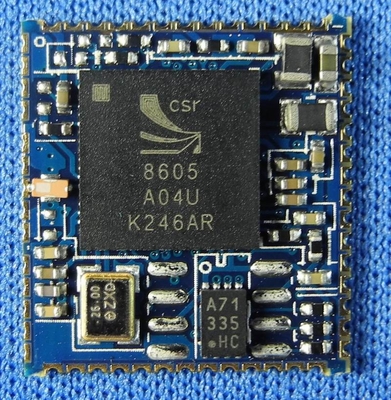

This is a Bluetooth Class2 (max 4dBm) module. It is based on CSR 8605 ROM version chip set which supports Bluetooth V4.0 standard. The Embedded Kalimba DSP Co-Processor support the advanced features such as mono audio streaming(A2DP profile with AAC option) and equalizer settings. Advanced user interface design and secure simple pairing that is flexible and easy to use. The integrated mono DAC provide high quality audio performance with SNR up to 95dB. And the on chip Switched-Mode Regulator and Li-ion battery charger support charge current up to 200mA. External charging mode can even support up to 700mA. The true single chip solution to audio applications. Internal ROM, serial flash and EEPROM enable the flexibilities of the module to meet various kinds of applications.





Applications



  • Low cost wireless mono(A2DP) headset.
  • Low cost wireless mono(A2DP) speaker.





Product Benefits



  • Ultra low cost ROM version
  • Simple design and easy to use.
  • Flexible configurations for various kinds of applications
  • AAC streaming supported
  • Line in mode supported
  • USB audio mode supported
  • APPLE battery status report





Product Specification



Dimension

16 x 15 x x 2.6 mm (4M SPI Flash for voice prompts)

16 x 15 x 1.8 mm (EEPROM)

Bluetooth Standard

Bluetooth 4.0

RF Power

4dBm maximum

Receiving Sensitivity

-84dBm

Program Memory

ROM version

Profiles

A2DP, AVRCP

Physical Interfaces

Digital PIOs, Analogue IOs, USB audio

Supply Voltage

2.7V – 4.25V



Rom Low Cost Bluetooth Module 0

Rom Low Cost Bluetooth Module 1

Rom Low Cost Bluetooth Module 2

Rom Low Cost Bluetooth Module 3

Rom Low Cost Bluetooth Module 4
