Product Details:
|
High Light: | 1.8 sata ssd,ssd 1.8 inch sata,solid state drive laptop |
---|

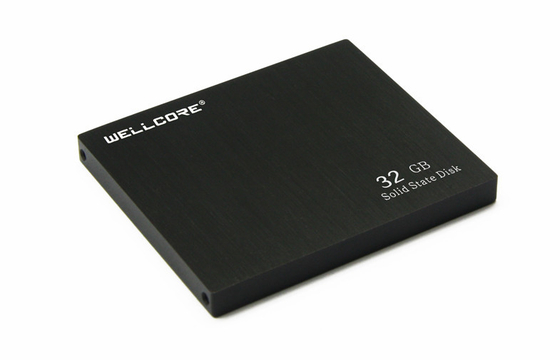

Rugged SLC 32GB W10S16 1.8 Micro Sata SSD SATAII for Industrial PC
Quick Detail:
1). Modle .No: W10S16
2). Form factor: 1.8 inch
3). Size(L:W:H) :100.2 * 69.6 * 9.5(±0.25mm), Weight :75 g .
4). original SLC Nand flash
5).Interface :SATA II (SATA 3Gbps Bandwidth Performance )
6). Capacity: 2/4/8/16/32/64/128/256GB
7) Sequential Read(Max):160MB/S
8) Sequential Write(Max):160MB/S
9) Operating temperature:
Commercial: 0°C ~ +70°C
Industrial: -40 °C ~ +85°C
10) MTBF (Mean Time Between Failures): 2000000 hours
Description:
Wellcore 1.8” SLC 32GB SATAII SSD is a high-performance and embedded Original NAND flash MLC-based storage solution with a wide operating temperature range, robust shock and vibration resistance, and host power loss protection. The JMF 605 controller provides the latest enhancements in endurance and performance while providing a power-efficient storage solution with 160/160MB/S. Subjected to rigorous testing including but not limited to wake-up tests, wide-temperature stress tests, ,and data burn-in, the Wellcore industrial ssd is designed to outlast and outperform the competition
Applications:
1). Laptop; Tablet PC; Notebook
2). POS machine;Smartphone, E terminal;Car Navigation System (GPS),
3). Thin Client etc Terminal Utilization
4). Industrial PC/ Embedded system
5). Computers that use 2.5" SATA HDD
6). Portable Navigation System, on-vehicle devices;Electronic meters, Electronic communications, Electrical machinery and equipment;
7) Automatic control system, Energy management system, Grid Systems;Ticket machines, Vending machines and other transportation equipment; POS Machine, Convenience store terminal, Felica / Suica, ATM and other financial terminals;
8): Diagnostic imaging systems, Blood analysis device, Medical Computer, Electronic case;
9): Servers, routers, Information Systems;Monitors, Secure terminal equipme
Specifications:
Spec |
1.8” SLC 32GB SATAII |
Modle .No |
W10S25SI128 |
Form factor |
1.8 inch |
Interface |
SATA II (3Gb/S) |
Capacity |
2/4/8/16/32/64/128/256GB |
Size(L:W:H) |
100.2 * 69.6 * 9.5(±0.25mm) |
Weight |
75 g |
Performance |
|
Sequential Read(Max) |
160MB/S |
Sequential Write(Max) |
160MB/S |
Random Read IOPS@4KB |
6000 IOPS |
Random Write IOPS@4KB |
1000 IOPS |
Acc.time |
0.1 ms |
Reliablityt & stability |
|
ECC |
24 bits in 1024 bytes |
MTBF |
2000000 hours |
SMART |
Support |
Secure erase |
NO |
Write protect |
NO |
Power-Down protection |
NO |
wear-leveling |
static and dynamic |
Warranty |
3 years |
Electrical Characteristics |
|
Input voltage |
5.0 V±5% |
Consumption (Active) |
1.5 W |
Consumption(Idle) |
0.6 W |
Environmental Conditions |
|
Operating Temperature |
|
Commercial: |
0℃ ~ +70℃ |
Industrial: |
-40 ~ 85 ℃ |
Storage Temperature |
-55 ~ 95 ℃ |
Humidity |
5 ~ 95% |
Shock |
1,500 G (Max) at 0.5 msec |
Vibration |
2.17 GRMS (5-700 Hz) Max |
Competitive Advantage:
1). Applying all the advantages of
2). Original brand NAND Flash
3). strong stability.
4). low energy consumption
5). High reliability ,data stability,
6). Fast read/write speed
7). anti-shock, anti-dust, Noiseless, superior security
8). faster application load times
9).. High reliability, data stability
10). Shockproof, rugged design safe and high stability and reliability
