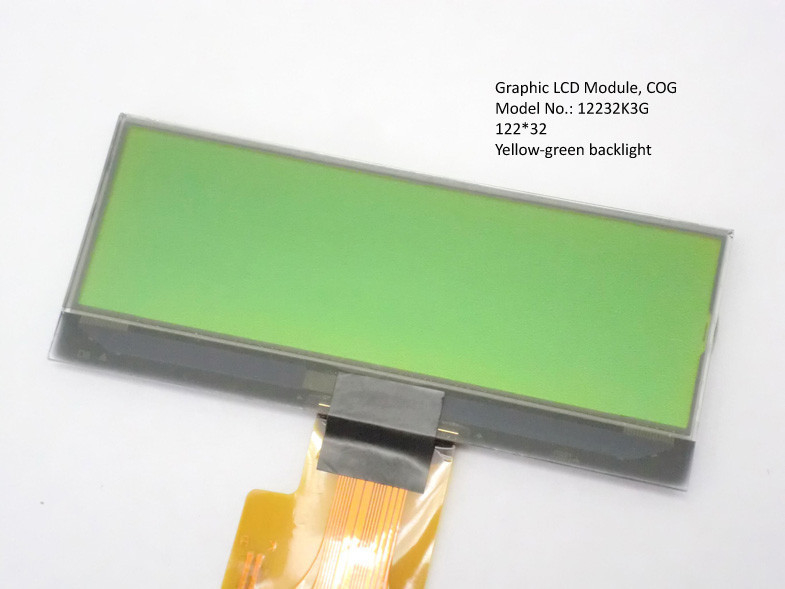

STN COG transflective lcd display 122 * 32 yellow - green backlight , serial lcd display
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Dispaly Mode: | Graphic Lcd Display | DOTS: | 122*32 |
|---|---|---|---|
| Controller IC:: | ST7567 | Drive Method:: | 1/33 Duty; 1/6 Bias, 7.7V |
| Active Area:: | 57.31*14.37 Mm | Interface: | Serial Port |
| Polarizer Type:: | Transflective, Positive | Operating Temperature: | –10ºC TO +60ºC |
| Backlight Color: | Green, 1pc LED | ||
| High Light: | serial lcd display,graphic lcd module |
||
STN type COG Graphic LCD Display 122*32 black on green
Specification:
| product name.: | graphic lcd module, COG |
| Model NO.: | 12232K3G |
| Resolution | 122*32 |
| LCD Outline Size: | 62.9*26.6*4.90 mm |
| View Area: | 59.50*18.10 mm |
| Active Area: | 57.31*14.37 mm |
| Display Type: | STN, yellow |
| Polarizer Type: | Transflective,positive |
| View Direction: | 6:0 O'Clock |
| VDD | +3.0V |
| Drive Method: | 1/33 Duty; 1/6 Bias, 7.7V |
| Controller IC: | ST7567 |
| interface: | Serial port |
| Backlight type: | yellow |
| Backlight Supply Voltage: | +2.7V, 10mA |
| Operating Temp: | –10ºC TO +60ºC |
| Storage Temp: | –20ºC TO +70ºC |
Welcome to customize product!
we have a professional R&D team working for you !
Our factory is founded in Year 2009, located in Nanjin China. Our thousands of products cover LCD / LCM/ COG including 122*32,128*64,128*128,160*160,192*64,240*128,320*240 etc
12232K3G Drawing as below:
