STN digit 22 * 32 character lcd module COB with yellow - green backlight for communications
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Dispaly Mode: | Segment, STN | Dots: | 122*32 |
|---|---|---|---|
| Controller IC:: | ST7567 | Drive Method:: | 1/64 DUTY,1/9 BIAS |
| Active Area:: | 57.31*14.37 Mm | Interface: | Serial Port |
| Operating Temperature: | -10~60℃ | Polarizer Type:: | Transflective, Positive |
| High Light: | segment lcd module,character lcd module |
||

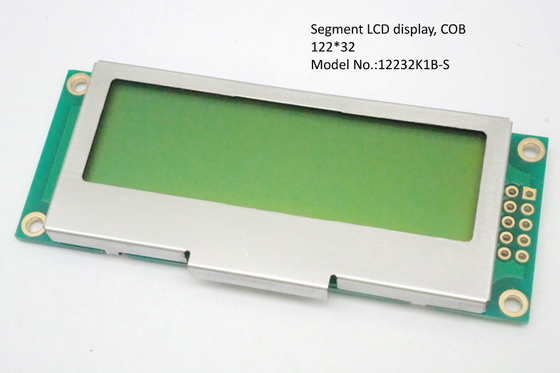

STN type COB 122*32 Segment LCD Display yellow-green backlight
Application:
used in medical, military, electric power, industrial control, aerospace, electronics, instrumentation, numerical control machine tools, automotive, communications and other fields
Specification:
| Model NO.: | 12232K1B-S |
| Outline Size: | 78.5x30 mm |
| View Area: | 59.5x18.1 mm |
| Active display area: | 57.31X14.37 mm |
| Display Type: | STN,Yellow-Green |
| Polarizer Type: | Transflective,positive |
| View Direction: | 6:00 O'Clock |
| VDD | +3.3V |
| Drive Method: | 1/64 DUTY,1/9 BIAS |
| Controller IC: | ST7567 |
| Backlight type: | Yellow-Green,bottom |
| Backlight Supply Voltage: | +3.3V |
| Operating Temp: | –10ºC TO +60ºC |
| Storage Temp: | –20ºC TO +70ºC |
