STN / TN / FSTN 16 x 1 character lcd display module Rohs compliant 1601B
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Character Format: | 16 (char) X 1 (line) | Driver Method: | 1/16 Duty, 1/5 Bias |
|---|---|---|---|
| Display Type: | Transflective | Display Mode: | Positive |
| View Angle: | 6:00 | Operating Temperature: | 0 ~ 50 |
| Controller/Driver: | S6A0069 | Backlight Type: | Yellow-green |
| VDD: | 5.0V | ||
| High Light: | character lcd module,character lcd screen |
||

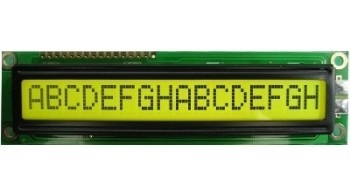

Transflective 16x1 character lcd display module Rohs compliant 1601B
Specifications:
|
Item number |
1601B |
|
Active area |
94.84 X 9.66mm |
|
External dimension |
122 X 33 X 12.5 mm |
|
Display Type |
Yellow-green, transflective , positive |
|
Viewing Direction |
6:00 |
|
Power Supply |
5.0 V |
|
Drive Method |
1/16Duty , 1/5Bias |
|
Controller |
S6A0069 |
|
Backlight type |
yellow-green, bottom |
|
Backlight supply voltage |
5.0 V |
| Operation temperature | 0°C ~ 50°C |
| Storage temperature | -10°C ~ 60°C |

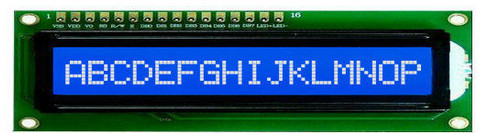

| backlight option | blue, white |
1) TN, STN, FSTN LCD panels / modules
2) TFT LCD panels / modules from 2.2" to 27"
3) Free sample can be provided for your evaluation
Character Module series : 8x2,16x1,16x2,16x4,20x2,20x4,40x2,40x4
OEM acceptable, we may customize the COB lcd module for you
Drawing
