Tianma 4.3" LCD capacitive touch screen TM043NVHG01 with binding driver HX8257A

large.img.alt
small.img.alt small.img.alt

Large Image :  Tianma 4.3" LCD capacitive touch screen TM043NVHG01 with binding driver HX8257A Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: TIANMA
Certification: RoHS
Model Number: TM043NVHG01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD20-100 / pc
Packaging Details: Tianma original package
Delivery Time: 1-4 weeks
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10000pcs per month
Detailed Product Description
Size: 4.3 Inch Resolution: 480x272
Brightness: 200 Cd/m2 Contrast Ratio: 500:1
View Angle(L/R/U/D): 70/70/70/50 Interface: Parallel RGB (1ch, 8 Bit)
Storage Temperature: -30~80℃ Display Mode: TN, Normal White
Color: 16.7M
High Light:

tianma lcd module

,

lcd resistive touch screen

4.3 inch capacitive touch screen TM043NVHG01 Tianma LCD module , binding driver HX8257A





Quick Detail



- 480x272 resoluion

- RGB  24bit

- Hard coating surface

- View direction 6:00







Applications



- Portable navigator , handhold TV,

  and we have various lcd module apply to different fields.







Specifications



Size

4.3"

Resolution (pixel)

480(RGB) X 272

Active Area(mm)

LCD:95.04x53.86

CTP:97.44(W) x 56.26(H)

Pixel Pitch (mm)

0.073 x 0.219

Display Mode

TM with Normally White

Uniformity(%)

80

NTSC(%)

50

Color Depth

16.7M

Viewing Angle (R/L/U/L)

70/50/70/70

Brightness (cd/m²)

260

Contrast Ratio

500:1

Response Time (ms)

20(on+off)

Outline Dimension (mm)

113.44x71.46x4.55mm

Weight (g)

TBD

Light Numbers

10 LEDs

Temperature Range

operating:  -20 to +60°C wide temperature

storage:     -30 to +70 °C

Humidity

operation: 90  (%RH)

storage:    90  (%RH)

Surface Treatment

CTP:6H
Up Polarizer:Anti-Glare(3H)

Electrical  Interface

 RGB 24 bits

CTP:I2C

ROHS Compliance

ROHS Compliance







Competitive Advantage



* Quality guarantee for 1 year from ship date.
* Fast delivery, we have warehouse in Hangzhou, many types are available in stock.






According to customers' various requests, we can match all accessories which inclusive of driver board, touch screen, LED backlight & LVDS cables.

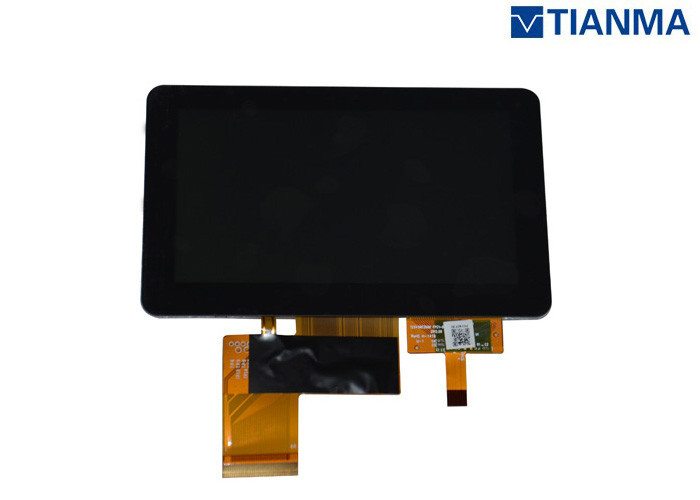

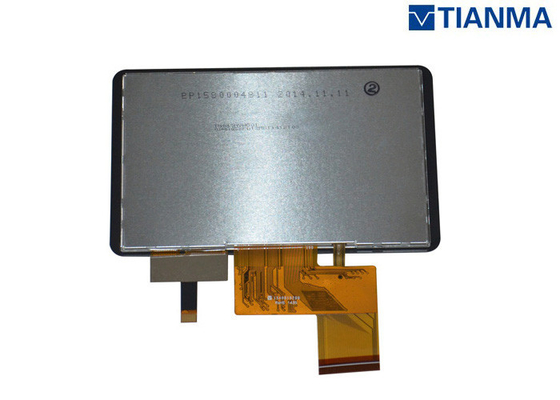

Picture Show:
