TM057KDH03 Tianma LCD module 5.7" , Small normal white LCD Panel replacement

large.img.alt
small.img.alt small.img.alt

Large Image :  TM057KDH03 Tianma LCD module 5.7" , Small normal white LCD Panel replacement Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: TIANMA
Certification: RoHS
Model Number: TM057KDH03
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD20-100 / pc
Packaging Details: Tianma original package
Delivery Time: 1-4 weeks
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10000pcs per week
Contact Now
Detailed Product Description
Size: 5.7 Inch Resolution: 320x240
Brightness: 400 Cd/m2 Contrast Ratio: 500:1
View Angle(L/R/U/D): 70/70/70/60 Interface: RGB (1ch, 8 Bit)
Storage Temperature: -30~85℃ Display Mode: TN, Normal White
Backlight: Work Over 50k Hours
High Light:

tianma lcd display

,

tianma lcd module



5.7 inch display screen TM057KDH03 Tianma LCD module ,  WLED backlight lifetime 50K





Quick Detail



- 320x240 resoluion

- RGB  18bit

- Inversion( up/down, left/right)

- Backlight lifetime more than 50,000 hours







Applications



- Industrial control and car applications, moreover we have various lcd module apply to different fields.







Specifications



Module number

TM057KDH03

Resolution

320(RGB) x 240

Pixel Pitch

0.360x0.360 (mm)

Active Area

115.20x86.40 (mm)

View angle

R/L/U/D 70/70/70/60(Deg)

Mode

TN

LCD Surface

Anti-Glare, 3H

Number of Colors

262K

Electrical Interface

RGB 18 bits

Brightness

400cd/m2

Contrast ratio

500:1

Outline dimension

144.0x104.6x12.3(mm)

Backlight

WLED

Supply Voltage (V)

3.3V

Response time

20(ms)(Typ.)

Operate temperature

-20-70 (°C)

Storage temperature

-30-85 (°C)

Package

Tianma original package;
40pcs/carton;
Carton size: 530x350x250mm;
Weight: 9.396±5%g








Competitive Advantage



* Quality ensure
* On-time shipment
* Secure payment





According to customers' various requests, we can match all accessories which inclusive of driver board, touch screen, LED backlight & LVDS cables.





Picture Show:

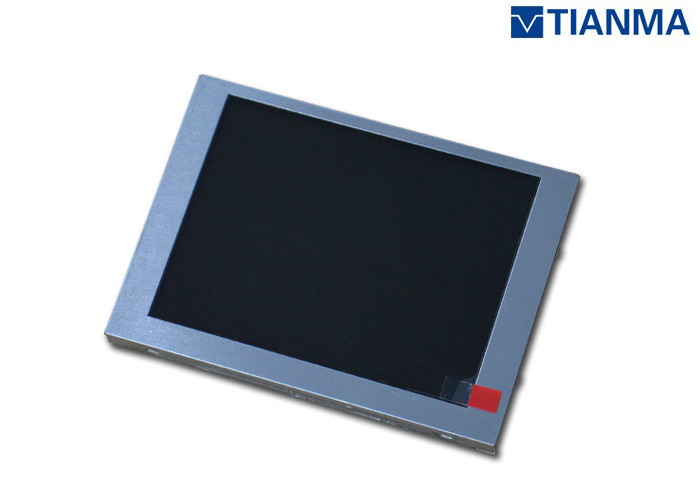

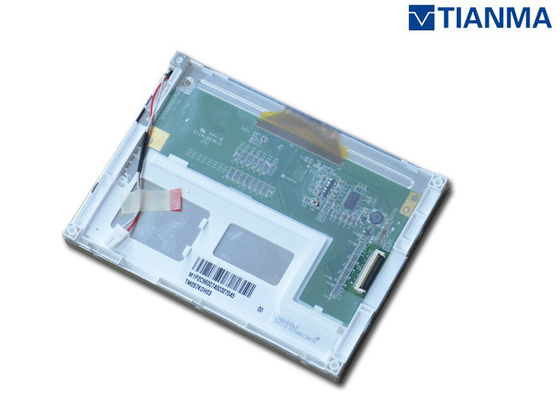

TM057KDH03 Tianma LCD module 5.7" , Small normal white LCD Panel replacement 0TM057KDH03 Tianma LCD module 5.7" , Small normal white LCD Panel replacement 1
