Transmissive Wide 10.2inch tft lcd display module with RGB Vertical Stripe Pixel Arrangement

large.img.alt
small.img.alt small.img.alt

Large Image :  Transmissive Wide 10.2inch tft lcd display module with RGB Vertical Stripe Pixel Arrangement Get Best Price

Product Details:
Place of Origin: Taiwan
Brand Name: Innolux
Certification: RoHS
Model Number: AT102TN03 V.9
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: Innolux original package
Delivery Time: within 1 week
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Size: 10.2 Inch Resolution: 800x480
Brightness: 250 Cd/m2 Contrast Ratio: 300:1
View Angle(L/R/U/D): 65/65/45/65(Deg) Interface: TTL
Operating Temperature: -30~85℃ Storage Temperature: -30-85℃
High Light:

innolux lcd screen

,

car lcd monitor





Innolux 10.2 inch lcd panel AT102TN03 V.9



Specifications:



Module number AT102TN03 V.9
Type a-Si TFT LCD
Size 10.2 inch
Brand Innolux
Resolution 800X3(RGB)X480
Width:Height 15:9
Pixel pitch 0.2775(W) × 0.2760(H) mm
Active Area 225.3(W) × 135.7(H) mm
View angle R/L/U/D 65/65/45/65(Deg)
Pixel Arrangement RGB Vertical Stripe
Surface Treatment Anti-glare
Electrical Interface Parallel RGB
Brightness 250(cd/m2)
Contrast ratio 300:1
Outline dimension 235x145.8x6.1mm(Typ.)
Panel Weight 325g(Typ.)
Backlight LED
Response time 35(ms)
Display mode TN, Normally White, Transmissive
Operate temperature -30-85(°C)
Storage temperature -30-85(°C)
Display Colors 262k(6 bit)
Power Consumption 2.11W(Typ.)
Power Supply Voltage 3.3v(Typ.)
Backlight lifetime 20k hrs(Min.)
Application

Portable DVD

Digital Photo Frame etc common use



We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.









Product Features:

--Wide Screen;

--Wide temperature;

--Wled backlight;

--360 Deg. rotation view support;

--Anti-glossy surface.









Package Details:

Innolux original package;

25pcs/carton;

Carton Size: 530x355x255mm;

G.W.: 10.79KGs(Typ.)



Product Show:

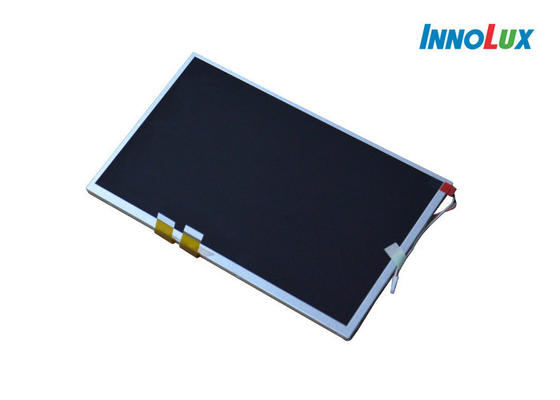

Transmissive Wide 10.2inch tft lcd display module with RGB Vertical Stripe Pixel Arrangement 0

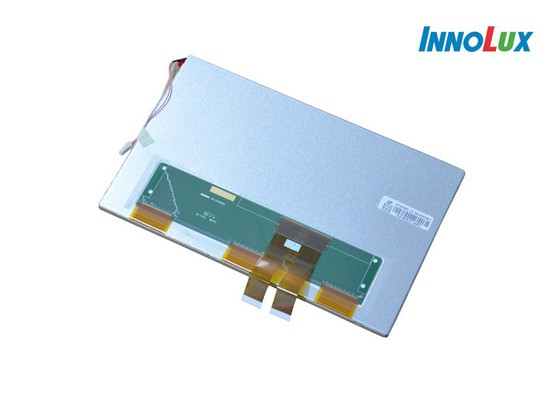

Transmissive Wide 10.2inch tft lcd display module with RGB Vertical Stripe Pixel Arrangement 1





Product Applications:



Transmissive Wide 10.2inch tft lcd display module with RGB Vertical Stripe Pixel Arrangement 2





Tag:

innolux lcd screen,

car lcd monitor,

innolux lcd display
