Product Details:
Payment & Shipping Terms:
|
Size: | 10.1 Inch | Resolution: | 1280*800 |
---|---|---|---|
Brightness: | 300 Cd/m2 | Contrast Ratio: | 1300:1 |
Interface: | LVDS (1 Ch,6-bit ) , 40pin | Backlight: | WLED |
Operating Temperature: | -20~ +60℃ | Storage Temperature: | -30~ +70℃ |
High Light: | AUO LCD screen,industrial lcd panel |
Ultra-thin screen AUO 10.1 inch TFT LCD module 1280*800 G101EVN01.0
Quick Detail
- Wide screen
- IPS mode, free view angle
- wide aspect ratio 16:10
- ultra-light, ultra-slim
* VGA & HDMI input driver board is available
* If you need, we can add capacitive multi-point touch panel ,with USB or I2C interface
Applications
- Notebook
- Personal computer
- Industrial machine
Specifications
Module number |
G101EVN01.0 |
Resolution |
1280 x 800 |
Pixel Pitch |
0.1695 X 0.1695 (mm) |
Active Area |
216.96(H) x 135.6(V) (mm) |
View angle |
R/L/U/D 85/85/85/85(Deg) |
Mode |
MVA, black |
LCD Surface |
Anti-glare,3H |
Number of Colors |
262K colors ( RGB 6-bit ) |
Electrical Interface |
LVDS |
Brightness |
300 cd/m2 |
Contrast ratio |
1300:1 |
Outline dimension |
229.46(H)x149.2(V)x4.96 (D)(mm) |
Gross weight |
187g(Typ.) |
Backlight |
WLED |
LED Life (hrs.) |
15K(Min.) |
Power Consumption (W) |
3.4W(Typ.) |
Supply Voltage (V) |
3.3V |
Response time |
25 (ms) |
Operate temperature |
-20-60 (°C) |
Storage temperature |
-30-70 (°C) |
Competitive Advantage
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from original factory;
>>Packing ensurance
Original package and Seal for batch orders, all the products are
in original package from original factory directly, and all the packages have labels and
serial number!
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service, we are young and full of passion!
>> We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables
we can supply FPC / FFC cable

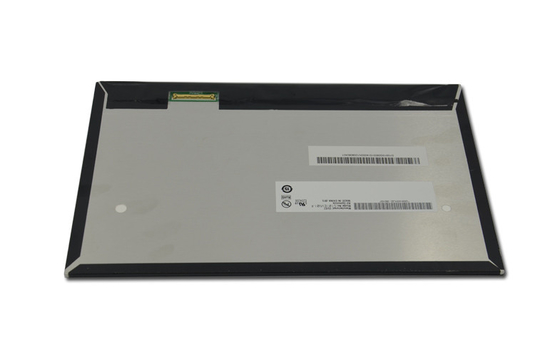

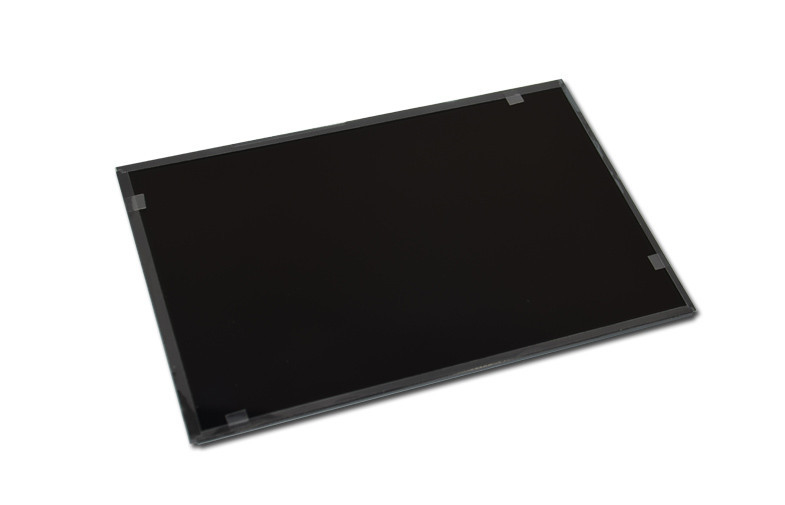

Picture Show:
