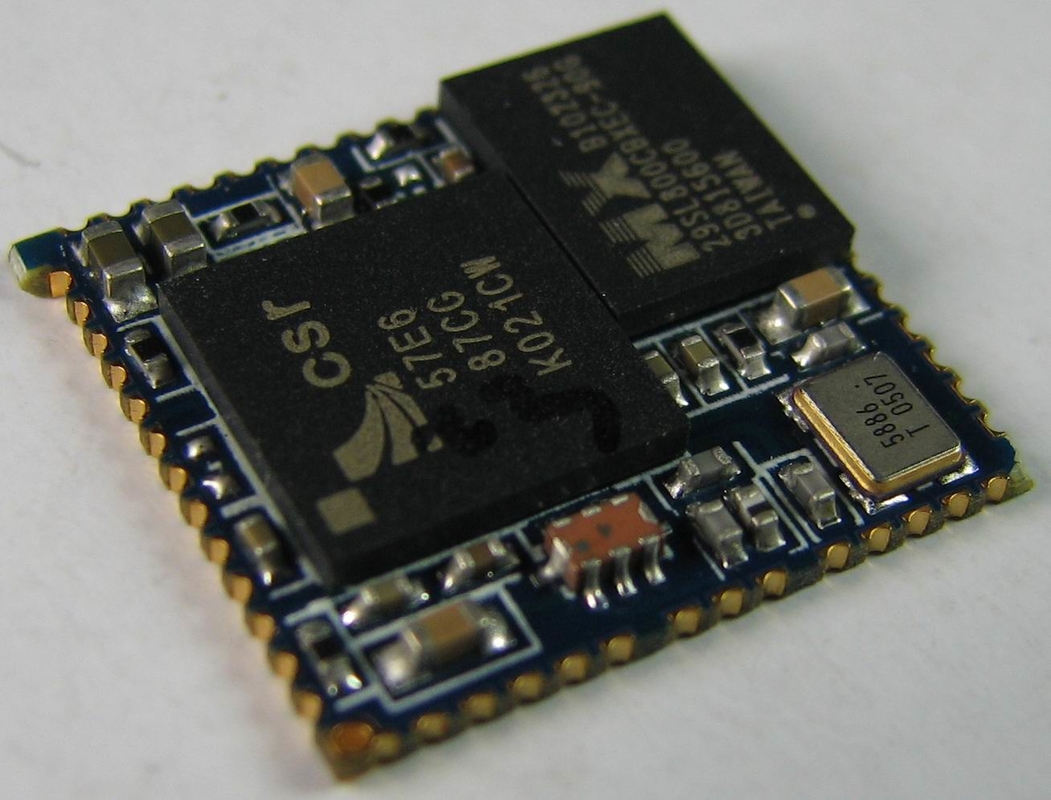

USB Audio Bluetooth A2DP Module

large.img.alt
small.img.alt

Large Image :  USB Audio Bluetooth A2DP Module Get Best Price

Product Details:
Place of Origin: China
Brand Name: Rayson
Certification: BQB, FCC
Model Number: BTM730
Payment & Shipping Terms:
Minimum Order Quantity: 500~1K
Packaging Details: Reel/Tray/Carton
Delivery Time: 7 working days after payment for samples, 8w for MP orders
Payment Terms: T/T, L/C, Check
Supply Ability: 5~10k/day
Detailed Product Description
High Light:

bluetooth serial module

,

bluetooth usb module

USB Audio Bluetooth A2DP Module



Product Description


This is a Bluetooth Class 2 (max 4dBm) module. It is based on CSR Bluecore 5 (BC5)-MM chip set. It can support Bluetooth V2.1+EDR system. The Embedded Kalimba DSP Co-Processor support the advanced features such as echo cancellation, noise reduction and stereo audio (A2DP profile) communications. The integrated stereo DAC provide high quality audio performance with SNR up to 95dB. Support digital audio bus such as PCM, I2S or SPDIF. And the on chip Switched-Mode Regulator and Li-ion battery charger eliminate the needs of external components and costs
The host Interfaces include USB and UART, that are programmable for data communication, module control or firmware upgrade.
The powerful and flexible design allows the module to support HSP/HFP/A2DP/AVRCP SPP, PBAP, …all kinds of Bluetooth profiles.



Applications

 High quality wireless stereo headset.
 High quality wireless stereo speaker.
 High quality wireless stereo transmitter.
 High quality wireless microphone
 Wireless USB audio class device.
 Dual paring mono headsets with noise reduction capability.
 Hands-free car kits.
 VOIP or land line phones wireless headsets.
 Bluetooth Audio Gateway



Product Benefits


 Powerful and flexible that fits various kinds of the Bluetooth applications.
 Low power consumptions of only 92mW
 Compact Bluetooth stack firmware, easy to use.
 Embedded Li-ion battery charger.



Product Specification



Dimension

16x15x2 mm

Bluetooth Standard

V2.1+EDR

RF Power

-6dBm to +4dBm

Receiving Sensitivity

-82dBm

Program Flash Memory

8M bits

Audio Interfaces

Analog,  PCM,  I2S and SPDIF

Host Interface

USB and UART

Supply Voltage

3.3V – 4.2V

USB Audio Bluetooth A2DP Module  0USB Audio Bluetooth A2DP Module  1USB Audio Bluetooth A2DP Module  2USB Audio Bluetooth A2DP Module  3USB Audio Bluetooth A2DP Module  4
