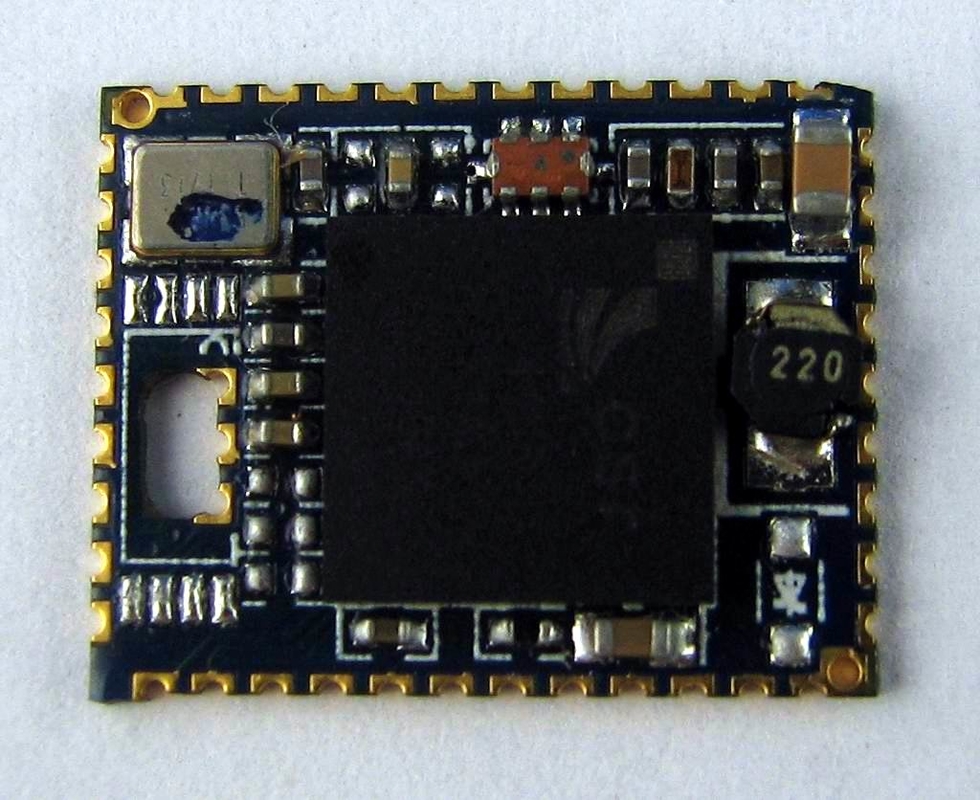

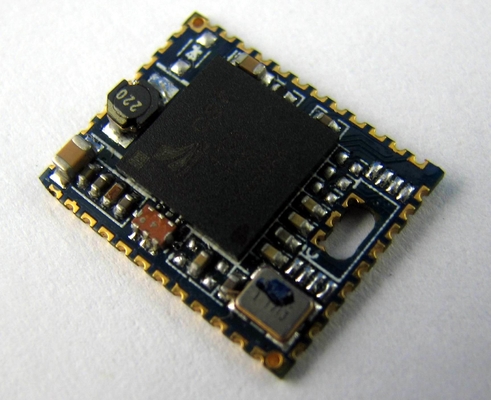

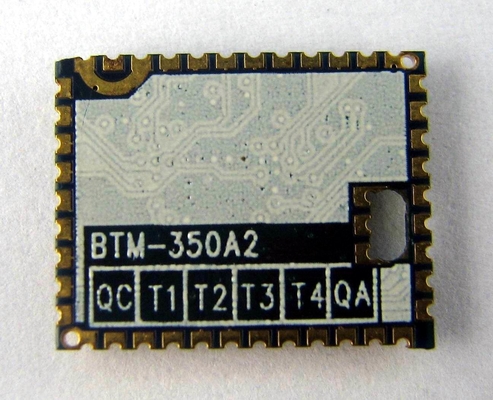

V2.0 + EDR Bluetooth SPP Module

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  V2.0 + EDR Bluetooth SPP Module Get Best Price

Product Details:
Place of Origin: China
Brand Name: Rayson
Certification: BQB, FCC
Model Number: BTM374
Payment & Shipping Terms:
Minimum Order Quantity: 500~1K
Packaging Details: Reel/Tray/Carton
Delivery Time: 7 working days after payment for samples, 8w for MP orders
Payment Terms: T/T, L/C, Check
Supply Ability: 5~10k/day
Detailed Product Description
High Light:

spp bluetooth module

,

bluetooth module spp

V2.0 + EDR Bluetooth SPP Module



Product Description


This is a Bluetooth Class2 (max 4dBm) module. It is based on CSR Bluecore 4 chip set with internal CODEC dedicated to voice applications. The dual roles firmware includes HSP and Audio Gateway functions which provide one stop solution to all the wireless voice applications. The friendly user interface include volume control, pairing, mute, call controls and battery monitoring that make product design much easier than before.
The integrated voice CODEC help to simplify the system design and lower the BOM cost as well. AT command set is also available for call control which allow the host system to implement more complicated functions.



Applications


 Bluetooth audio gate way device.
 Bluetooth headset or client device.



Product Benefits


 Due roles (HSP & AG) Bluetooth software stack
 Low power consumptions of only 92mW
 compact size



Product Specification



Dimension

16.5x13x2.2 mm

Bluetooth Standard

V2.0+EDR

RF Power

-6dBm to +4dBm

Receiving Sensitivity

-80dBm

Program Flash Memory

6M bits

Audio Interfaces

Analog,  PCM

Host Interface

UART

Supply Voltage

3V – 3.6V

V2.0 + EDR Bluetooth SPP Module  0V2.0 + EDR Bluetooth SPP Module  1V2.0 + EDR Bluetooth SPP Module  2V2.0 + EDR Bluetooth SPP Module  3V2.0 + EDR Bluetooth SPP Module  4
