VGA / DVI input driver board AUO TFT 12.1'' LCD panel wide temperature range 300 cd / m2
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 12.1 Inch | Resolution: | 800*600 |
|---|---|---|---|
| Brightness: | 300 Cd/m² | Contrast Ratio: | 600:1 |
| Interface: | LVDS (1 Ch, 6/8-bit) | Backlight: | WLED |
| Operating Temperature: | -30~85℃ | Storage Temperature: | -30~85℃ |
| Best View Angle: | 6 O'clock | ||
| High Light: | AUO LCD module,AUO LCD screen |
||

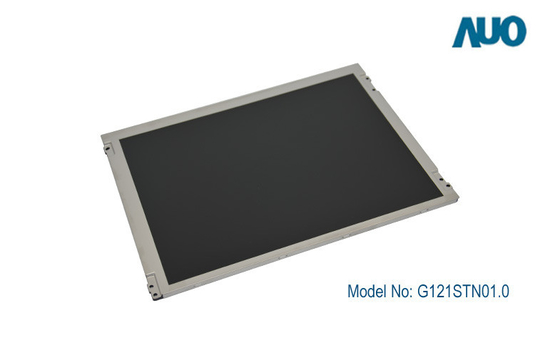

VGA / DVI input AUO TFT 12.1'' LCD module 800*600 G121STN01.0
Quick Detail
- wide view angle
- wide temperature range
- Compatible with G121SN01 V4

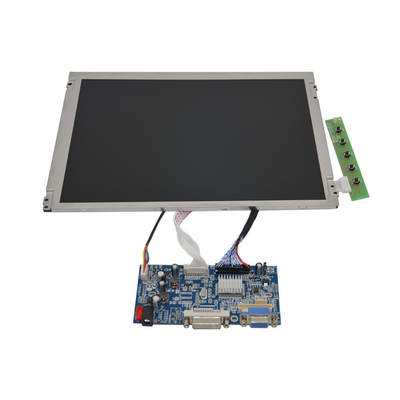

* VGA & DVI input driver board is available
Specifications
| Module number | G121STN01 V0 |
| Resolution | 800x600 |
| Pixel Pitch | 0.3075 x 0.3075 (mm) |
| Active Area | 246.0(H)x184.5(V) (mm) |
| View angle | R/L/U/D 80/80/65/75 (Deg) |
| Mode | TN |
| LCD Surface | Anti-glare,3H |
| Number of Colors | 262K/16.2M |
| Electrical Interface | Digital, LVDS(1ch, 6/8 bit) |
| Brightness | 300 cd/m2 |
| Contrast ratio | 600:1 |
| Outline dimension | 279.0(H)x209.0(V)x5.73(T) (mm) |
| Gross weight | 580g (Max.) |
| Backlight | WLED |
| LED Life (hrs.) | 30K |
| Power Consumption (W) | 4.61(Typ.) |
| Supply Voltage (V) | 3.3V |
| Response time | 35 (ms) |
| Operate temperature | -30-85 (°C) |
| Storage temperature | -30-85 (°C) |
| Operate humidity | 5-95 (%RH) |
| Storage humidity | 5-95 (%RH) |
Our Advantage
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from AUO factory;
>>Packing ensurance
all the products are in original package from original factory directly, and all the packages have labels andserial number!
>>Delivery ensurance
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team withn goods experience to provide effective service, we are young and full of passion!
Picture Show:
