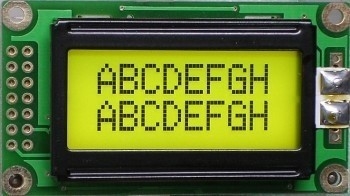

Wide Viewing angle 8 x 2 numeric character lcd display panels for Cell Phone , Camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Character Format: | 8x2 Characters | Driver Method: | 1/16 Duty, 1/5 Bias |
|---|---|---|---|
| Display Type: | Transflective | Display Mode: | Positive |
| Viewing Angle: | 6:00 | Operating Temperature: | -20 ~ 70 Degree |
| Controller/Driver: | S6A0069 OR Equivalent | Backlight Type: | Yellow-green , Bottom |
| VDD: | 5V | ||
| High Light: | character lcd module,character lcd screen |
||
Transflective 8x2 character lcd display , STN yellow-green display
Quick Detail:
1.Character format: 8 X 2 Characters
2. Driver method: 1/16 duty, 1/5 bias
3. Display type:
4. Viewing angle: 6:00
5. Operating temperature: -20 ~ 70
6. Storage temperature: -30 ~ 80
7. Controller/Driver: S6A0069 OR equivalent
8. Backlight type: yellow-green, bottom
9. VDD: 5.0V
10. Backlight voltage: 4.2V
Applications:
Office Automation , Home Appliances , Consumer Products
Specifications:
|
Item number |
0802A |
|
Active area |
27.81 X 11.5mm |
|
External dimension |
58.0 X 32.0 X 13 mm |
|
Display Type |
Yellow-green, transflective , positive |
|
Viewing Direction |
6:00 |
|
Operation temperature |
-20°C ~ 70°C |
|
Storage temperature |
-30°C ~ 80°C |
|
Power Supply |
5.0 V |
|
Drive Method |
1/16Duty , 1/5Bias |
|
Controller |
S6A0069 |
|
Interface |
Parallel interface |
|
Backlight type |
yellow-green, bottom |
|
Backlight supply voltage |
4.2 V |
Drawing
