WVGA 2 Point 7 Inch Capacitive Touchscreen TFT LCD Module FN070M01-02

small.img.alt small.img.alt

Large Image :  WVGA 2 Point 7 Inch Capacitive Touchscreen TFT LCD Module FN070M01-02 Get Best Price

Product Details:
Place of Origin: China
Brand Name: Fannal
Certification: CE,RoHS
Model Number: FN070M01-2
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Get the latest price
Packaging Details: Original Packing
Delivery Time: 4-6weeks
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10,000pcs/month
Detailed Product Description
Type: Capacitive Touch Screen Size: 7 Inch
Controller: CYTM568 Touch Points: 5
Interface: IIC Resolution: 800*480
High Light:

multi touch capacitive screen


multi touch touchscreen

      WVGA 2 Point 7 Inch Capacitive Touchscreen TFT LCD Module FN070M01-02

Product Specification
No. Item  Specification
1 Type LCD with Capacitive Touch Panel
2 Model Number FN070M01-2
3 Size 7 inch
4 Resolution  800*480
5 Luminance  250 cd/m2
6 CTP Structure  G+G
7 Touch Controller  CYTM568
8 Touch Points 5 Touch
9 Active Area 154.88*86.72 mm
10 Outline Dimension 179.8*124.8 mm
11 CTP Interface I2C
12 TFT Interface  24 bit TTL with T-CON
13 Surface Hardness 6H
14 CTP Transmittance > 86%
15 Operating Temp -20℃ ~+70℃
Business Information
1 Terms of Delivery FOB
2 MOQ 1K
3 Lead Time  4 ~8 weeks
4 Payment 50% deposit and 50% balance before shipment

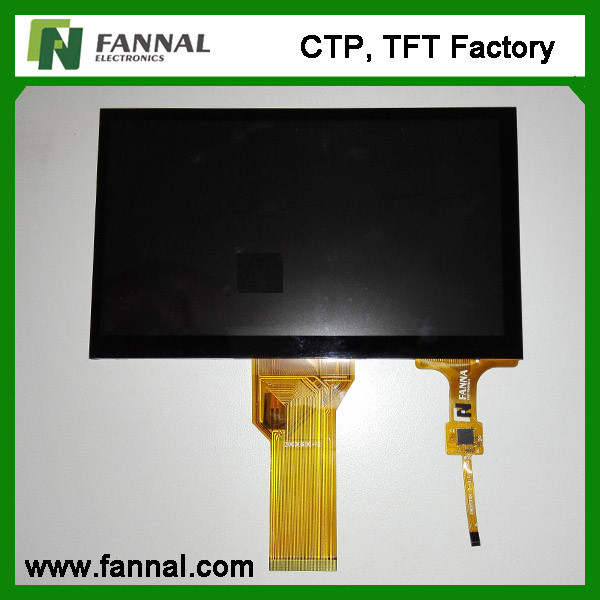

     Photos of our 7 inch LCD touch screen




   Why we apply G+G structure


G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have
ITO coating so that it can be sensitive. There are many advantages of G+G structure:
 1. High durability, function and appearance do not change at least 5 years. Anti-aging, anti-yellow, no
peeling, excellent corrosion resistance and ultraviolet resistance.

 2. High transparency, >86%.
 3. Fast response time when touching.
 4. Very firm performance.


    Fannal's hot products of capacitive touch panel

Basic Information CTP  TFT
Model Number Size Touch IC Cover Lens(mm) Resolution Type Luminance Interface
FN028MV02 2.8" 2 SSD2532 50.0*69.2 43.2*57.6 240*320 TN 350 RGB
FN043AM02-V1.0 4.3" 5 CYTM568 105.5*67.02 96.0*54.9 480*272 TN 250 TTL/8bit
FN043AM03-V1.0 4.3" 5 CYTM568 62.6*103.0 56.8*94.0 480*800 IPS 300 MIPI/2Lane
FN050AM02-V1.0 5" 5 CYTM568 76.3*120.7 65.8*109.0 800*480 TN 450 TTL/8bit
FN070AM01-2 7" 5 CYTM568 179.8*124.8 154.9*86.7 800*480 TN 250 TTL/8bit
FN080AM01-V4.0 8" 5 FT5406 183.0*141.0 163.1*122.5 800*600 TN 300 TTL/8bit
FN080AM10-V1.0 8" 5 CYTM568 183.0*141.0 163.0*122.5 1024*768 IPS 250 LVDS/8bit
FN101AM07-V1.0 10.1" 5 FT5406 238.0*156.0 218.0*136.6 1280*800 IPS 250 LVDS/8bit
FN104AM01-V3.0 10.4" 5 EXC205442TAG 225.5*176.3 211.4*158.8 1024*768 IPS 500 LVDS/8bit
FN121M01 12.1" 4 EXC7200 270.0*212.5 250.6*189.1 1024*768 IPS 600 LVDS/8bit


Touch Solutions


Sunlight ReadabilityCalibri12



    Why FANNAL


  1. Standard capacitive touch panel and LCD touch screen in stock.

  2. Complete customized solution& special treatment.

  3. Nearly 10 years experience in touch screen industry, we understand customers requests.

  4. High quality and realiabity of our touch screen, and ensure long-term supply.

  5. A strict quality control system.

  6. High price-performance of touch screen.

  7. Provide the best debugging and other after sales services worldwide.


    Company Information

Fannal Electronics focus on touch screen solutions for global SMEs. We mainly work for industrial level touch

screen, which is very stable and durable. Our team has more than 10 years experience in touch industry. With a strong R&D team, we offer the most suitable touch screen for our customers and help them shorten the production cycle. We have a series of standard capacitive touch screen (1.28 ~32 inch) ready for sale and customize service available. We are committed to supplying professional touch screen

solution, best quality products and excellent technical support.
