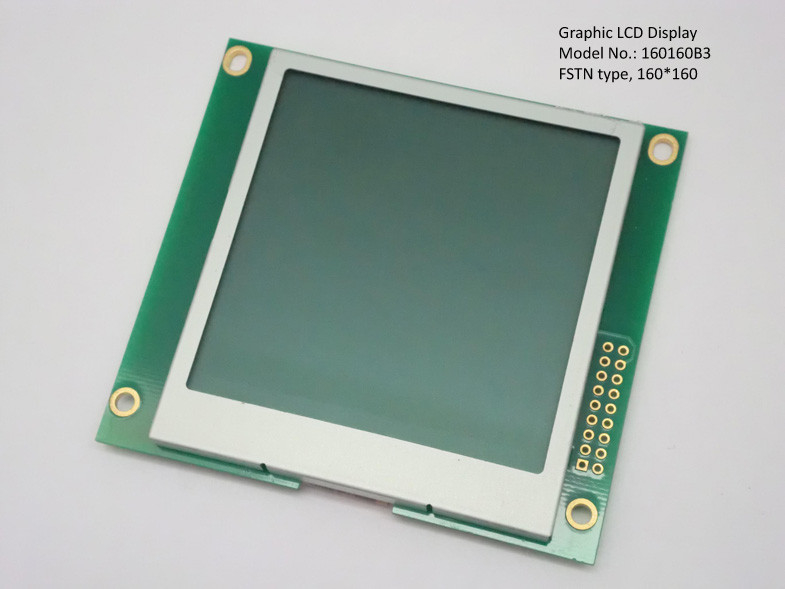

Yellow - green Backlight FSTN monochrome Graphic LCD car display for instrumentation
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Dispaly Mode: | Graphic Lcd Display | Resolution: | 160*160 |
|---|---|---|---|
| Controller IC:: | UC1698 | Drive Method:: | 1/160 Duty; 1/12 Bias |
| Active Area:: | 54.38*54.38 Mm | Interface: | Parallel Port |
| Polarizer Type:: | Transflective, Positive | Operating Temperature: | –20ºC TO +70ºC |
| Backlight Color: | Yellow Or Blue | ||
| High Light: | serial lcd display,graphic lcd module |
||
FSTN Graphic LCD Display 160*160 yellow-green or blue backlight
Application:
widely used in medical, military, electric power, industrial control, aerospace, electronics, instrumentation, numerical control machine tools, automotive, communications and other fields
Specification:
| product name.: | graphic lcd display |
| Model NO.: | 160160B3 |
| Resolution | 160*160 |
| LCD Outline Size: | 83.8*76.5*8.8 mm |
| View Area: | 60*60 mm |
| Active Area: | 54.38*54.38 mm |
| Display Type: | FSTN |
| Polarizer Type: | Transflective,positive |
| View Direction: | 6:0 O'Clock |
| VDD | +3.3V |
| Drive Method: | 1/160 Duty; 1/12 Bias |
| Controller IC: | UC1698 |
| interface: | Serial/parallel port |
| Backlight type: | yellow-green or blue |
| Backlight Supply Voltage: | +3.3V |
| Operating Temp: | –20ºC TO +70ºC |
| Storage Temp: | –30ºC TO +80ºC |
Welcome to customize product!
we have a professional R&D team working for you !
Our factory is founded in Year 2009, located in Nanjin China. Our thousands of products cover LCD / LCM/ COG including 122*32,128*64,128*128,160*160,192*64,240*128,320*240 etc
160160B3 Drawing as below:
