Yellow or Blue Background Segment LCD Display 128 * 64 , 7 segment digital display
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Dispaly Mode: | Segment Lcd Display, COG | DOTS: | 128*64 |
|---|---|---|---|
| Controller IC:: | RA8816 | Drive Method:: | 1/65 Duty; 1/9 Bias |
| Active Area:: | 43.48*21.72 Mm | Interface: | Serial / Parallel Port, Optional |
| Polarizer Type:: | Transflective, Positive | Operating Temperature: | –20ºC TO +70ºC |
| Storage: | –30ºC TO +80ºC | ||
| High Light: | character lcd module,blue 7 segment display |
||

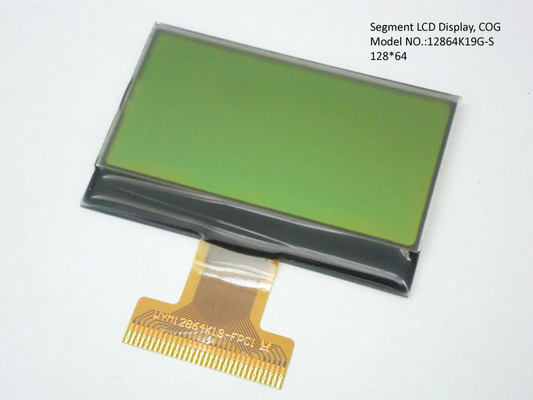

STN type Yellow or Blue background Segment LCD Display COG 128*64
Application:
| 1 | medical |
| 2 | military |
| 3 | electric power |
| 4 | industrial control |
| 5 | aerospace |
| 6 | electronics |
| 7 | instrumentation |
| 8 | numerical control machine tools |
| 9 | automotive |
| 10 | communications |
| 11 | other fields |
Specification:
| product name.: | Segment lcd module, COG |
| Model NO.: | 12864K19G |
| Resolution | 128*64 |
| LCD Outline Size: | 57.6*37.8*5.60 mm |
| View Area: | 48.0*26.00 mm |
| Active Area: | 43.48*21.72 mm |
| Display Type: | STN, Yellow-green or Blue |
| Polarizer Type: | transflective |
| View Direction: | 6:0 O'Clock |
| VDD | +3.3V |
| Drive Method: | 1/65 Duty; 1/9 Bias |
| Controller IC: | RA8816 |
| interface: | Serial / parallel port, optional |

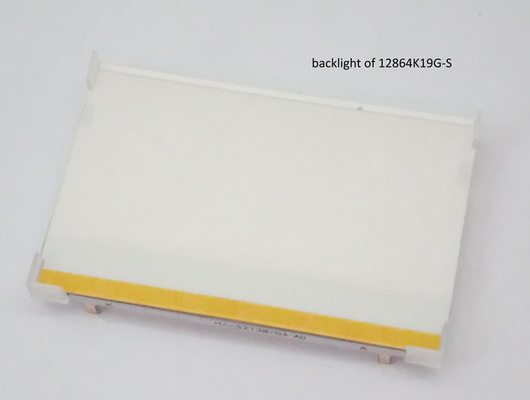

| Backlight type: | white |
| Backlight Supply Voltage: | +3.0V |
| Operating Temp: | –20ºC TO +70ºC |
| Storage Temp: | –30ºC TO +80ºC |
Welcome to customize product!
we have a professional R&D team working for you !
12864K19G-S Drawing as below:
