Low Cost Bluetooth Module Audio
Product Description

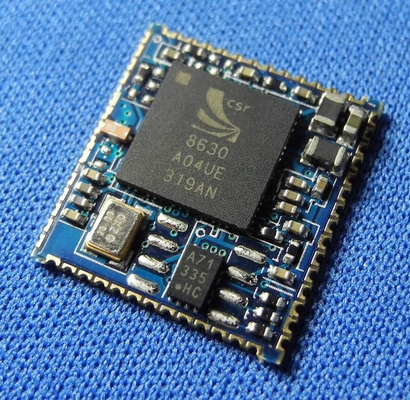

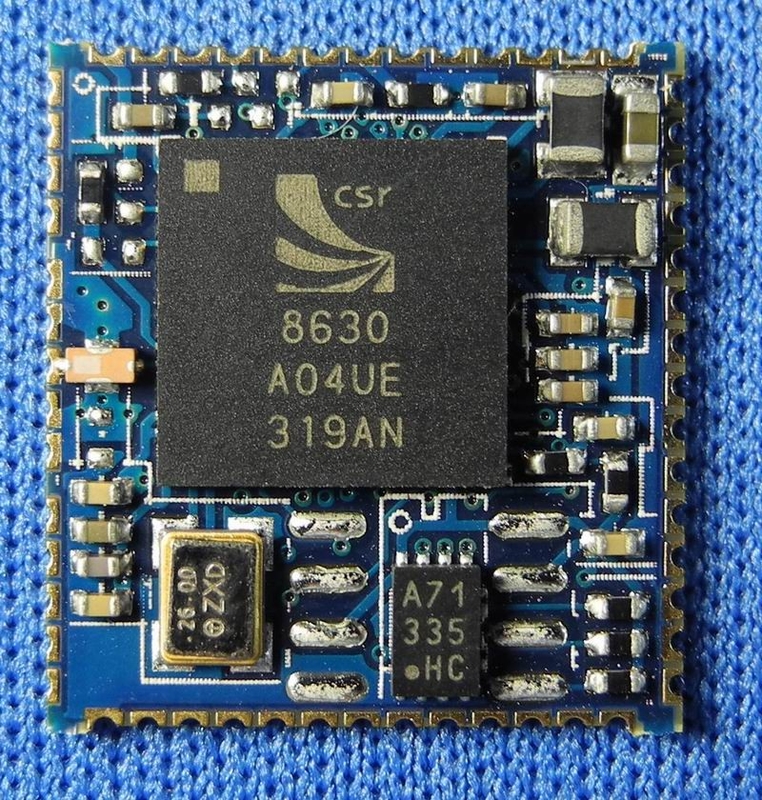

This is a Bluetooth Class2 (max 4dBm) module. It is based on CSR 8630 ROM version chip set which supports Bluetooth V4.0 standard. The Embedded Kalimba DSP Co-Processor support the advanced features such as stereo audio streaming (A2DP profile with AAC option) and equalizer settings. Advanced user interface design and secure simple pairing that is flexible and easy to use. The integrated stereo DAC provide high quality audio performance with SNR up to 95dB. And the on chip Switched-Mode Regulator and Li-ion battery charger support charge current up to 200mA. External charging mode can even support up to 700mA. The true single chip low cost solution to audio applications. Internal ROM, serial flash and EEPROM enable the flexibilities of the module to meet various kinds of applications.
Applications
- Low cost wireless stereo headset.
- Low cost wireless stereo speaker.
Product Benefits
- Ultra low cost ROM version
- Simple design and easy to use.
- Flexible configurations for various kinds of applications
- AAC streaming supported
- Line in mode supported
- USB audio mode supported
- APPLE battery status report
Product Specification
|
Dimension |
16 x 15 x x 2.6 mm (4M SPI Flash for voice prompts) 16 x 15 x 1.8 mm (EEPROM) |
|
Bluetooth Standard |
Bluetooth 4.0 |
|
RF Power |
4dBm maximum |
|
Receiving Sensitivity |
-84dBm |
|
Program Memory |
ROM version |
|
Profiles |
A2DP, AVRCP |
|
Physical Interfaces |
Digital PIOs, Analogue IOs, USB audio |
|
Supply Voltage |
2.7V – 4.25V |
