800 x 600 High resolution Innolux LCD Panel 10.4 “ LSA40AT9001 , digital camera lcd screen

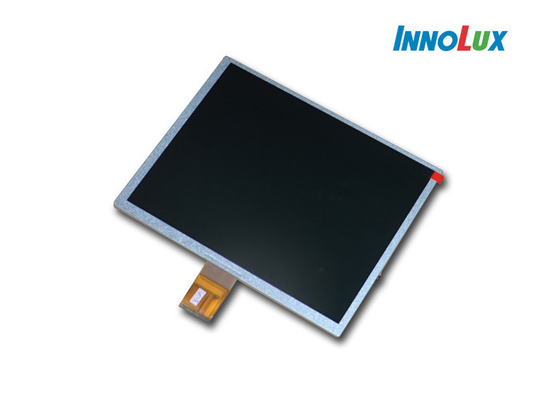

Large Image : 800 x 600 High resolution Innolux LCD Panel 10.4 “ LSA40AT9001 , digital camera lcd screen Get Best Price

Product Details:

Certification:	RoHS
Model Number:	LSA40AT9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Innolux original package
Delivery Time:	within 1 week
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000pcs per week

Contact Now

Detailed Product Description

Size:	10.4 Inch	Resolution:	800x600
Brightness:	250 Cd/m2	Contrast Ratio:	500:1
View Angle(L/R/U/D):	70/70/50/60(Deg)	Interface:	Parallel RGB
Operating Temperature:	-10~50℃	Storage Temperature:	-20-60℃
Highlight:	innolux lcd screen , car lcd monitor

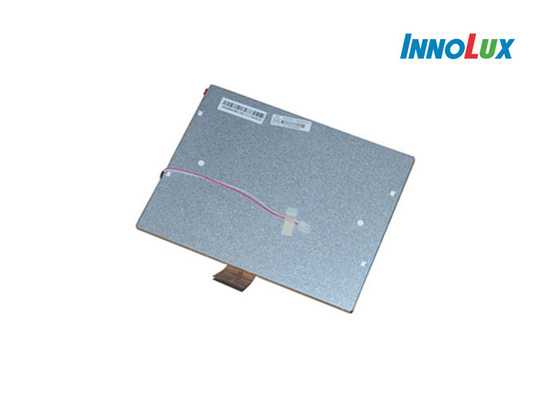

Innolux 10.4 inch tft lcd module LSA40AT9001

Specifications:

Module number	LSA40AT9001
Type	a-Si TFT LCD
Size	10.4 inch
Brand	Innolux
Resolution	800X3(RGB)X600
Width:Height	4:3
Pixel pitch	0.264(W)X0.264(H) mm
Active Area	214.2 (W)X162.5 (H) mm
View angle	R/L/U/D 70/70/50/60(Deg)
Pixel Arrangement	RGB Vertical Stripe
Surface Treatment	Hard coating(3H)
Electrical Interface	Parallel RGB
Brightness	250(cd/m2)
Contrast ratio	500:1
Outline dimension	228.4x175.4x5.9mm(Typ.)
Backlight	LED
Response time	25(ms)
Display mode	TN, Normally White, Transmissive
Operate temperature	-10-50(°C)
Storage temperature	-20-60(°C)
Display Colors	262k/16.2M(6 bit/ 6 bit + Dithering)
Power Supply Voltage	3.3v(Typ.)
Backlight lifetime	20k hrs(Min.)
Applications	Digital photo frame
