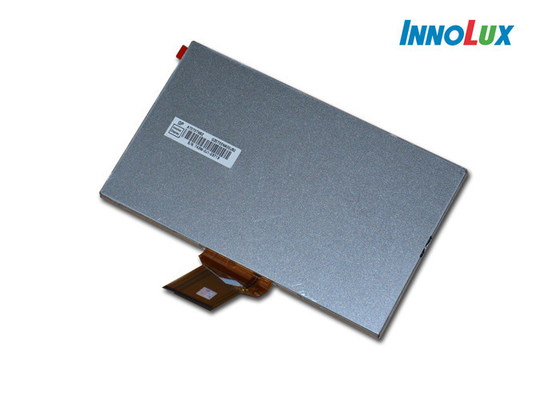

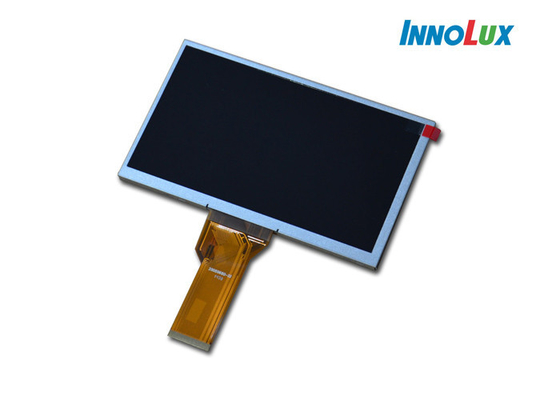

Portable 7" Innolux lcd panel with wide screen and WLED backlight for Video telephone

Large Image : Portable 7" Innolux lcd panel with wide screen and WLED backlight for Video telephone Get Best Price

Product Details:

Certification:	RoHS
Model Number:	AT070TN92

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiated
Packaging Details:	Innolux original package
Delivery Time:	within 1 week
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000pcs per week

Contact Now

Detailed Product Description

Size:	7 Inch	Resolution:	800x480
Brightness:	250 Cd/m2	Contrast Ratio:	500:1
View Angle(L/R/U/D):	70/70/50/70(Deg)	Interface:	Parallel RGB
Operating Temperature:	-20~70℃	Storage Temperature:	-30-80℃
Highlight:	innolux lcd display , car lcd monitor

7 inch lcd panel AT070TN92

Specifications:

Module number	AT070TN92
Type	a-Si TFT LCD
Size	7 inch
Brand	Innolux
Resolution	800X3(RGB)X480 WVGA
Width:Height	16:9
Pixel Pitch	0.1926(W) × 0.1790(H) mm
Active Area	156.7(W) × 89.1(H) mm
View angle	R/L/U/D 70/70/50/70(Deg)
Pixel Arrangement	RGB Vertical Stripe
Surface Treatment	Anti-glare
Electrical Interface	Parallel RGB
Brightness	250(cd/m2)
Contrast ratio	500:1
Outline dimension	164.9(W) ×100.0(H) ×5.7(D) mm
Panel Weight	150g(Typ.)
Backlight	LED
Response time	25(ms)
Display mode	TN, Normally White, Transmissive
Operate temperature	-20-70(°C)
Storage temperature	-30-80(°C)
Display Colors	262k/16.7M (6 bit/6 bit + Dithering)
Power Consumption	1.90W(Typ.)
Power Supply Voltage	3.3v(Typ.)
Backlight lifetime	20k hrs(Min.)
Application	Portable DVD Digital Photo Frame Video telephone MP4 PMP etc common use.
