Anti - glare Mitsubishi LCD Module 700 cd / m2 , High brightness small lcd display screens

Large Image : Anti - glare Mitsubishi LCD Module 700 cd / m2 , High brightness small lcd display screens Get Best Price

Product Details:

Certification:	RoHS,UL
Model Number:	AA121TD01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Mitsubishi original package
Delivery Time:	within 1 week
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000pcs per week

Contact Now

Detailed Product Description

Size:	12.1 Inch	Resolution:	1280x800
Brightness:	700 Cd/m2	Contrast Ratio:	700:1
View Angle(L/R/U/D):	80/80/80/60(Deg)	Interface:	LVDS
Operating Temperature:	-30~80℃	Storage Temperature:	-30-80℃
Highlight:	mitsubishi lcd display , mitsubishi lcd panel

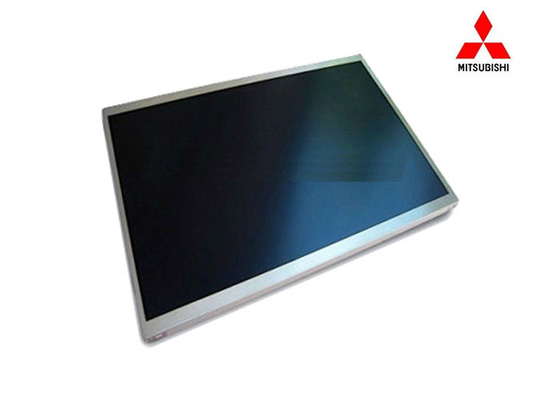

Mitsubishi 12.1 inch tft lcd module AA121TD01

Specifications:

Module number	AA121TD01
Type	a-Si TFT LCD
Panel Size	12.1 inch
Brand	Mitsubishi
Resolution	1280x800
Width: Height	16:10
Pixel Pitch	0.204X 0.204(mm)
Active Area	261.12 X 163.20(mm)
View angle	R/L/U/D 80/80/80/60(Deg)
Mode	TN, normally white, transmissive
LCD Surface	Anti-glare, Hard coating (3H)
Number of Colors	262k/16.7M (6-bit/6-bit + Hi-FRC)
Electrical Interface	LVDS(1ch, 6/8-bit)
Brightness	700 cd/m2
Contrast ratio	700:1
Outline dimension	283x185.1x9.7mm(Typ.)
Panel weight	620g(Typ.)
Backlight	WLED
Working lifetime	100K hrs(Min.)
Power Consumption	9.4W(Typ.)
Supply Voltage (V)	3.3V
Response time	16 (ms)
Operate temperature	-30-80 (°C)
Storage temperature	-30-80 (°C)
Application	Industrial grade use.

We also can provide total set such as lcd panel + touch panel + ad board + osd board + cables + Power Supply etc accessories for you, quality promised.

Product Features:

--Long lifetime more than 100K hours at least;

--Wide temperature;

--Wide view angle;

--Wide screen;

--WLED backlight & LED driver integrated;

--High brightness;

--180 Deg. rotation view supported;

--6/8 bit optional;

--Anti-glare surface.

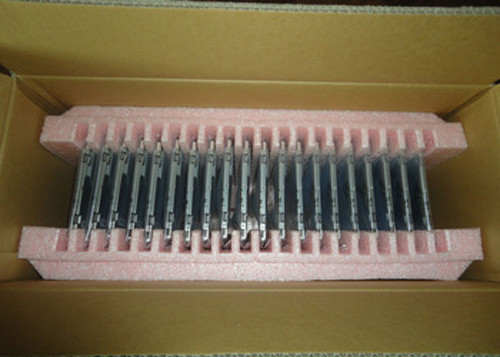

Product Show:

Anti - glare Mitsubishi LCD Module 700 cd / m2 , High brightness small lcd display screens 0
