10.1 inch MCU LCD , 220.4 × 129.1 Viewing Area 65K TFT LCD Touch Screen
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Display Scale: | 16:9 | Resolution: | 1024*600 |
|---|---|---|---|
| Colors: | 65K | CPU: | Cortex |
| Backlight: | LED | Interface: | RS232/RS485/CMOS/USB |
| LCD Class: | A | ||
| Highlight: | lcd graphic display module,lcd panel module |
||
10.1 inch MCU LCD , 220.4 × 129.1 Viewing Area 65K TFT LCD Touch Screen
Advantage:
|
With CPU & Driving Device |
|
Controlled by Any MCU |
|
Display Picture/ Text/ Curve via Commands |
|
65536 colour TFT display |
|
Touch Screen |
|
RS232/ TTL UART Interface & USB port |
|
Wide voltage range |
|
Widely Used in Many various Industrial Field |
|
Easy to Use! Powerful Function! Saving Cost and Time! |
Product Parameters
Model: STI101WT-01 (Industrial Type)
|
Physical Parameter |
|
|
Model |
STI101WT-01 |
|
Size (Inch) |
10.1" |
|
Resolution |
1024×RGB×600 |
|
Pixel Spacing |
0.1905 mm × 0.0635 mm (H×V) |
|
Color |
65536 colors (16 bit) |
|
Viewing Area |
220.4mm×129.1mm |
|
Overall Dimension |
246.5mm×147.8mm×16.5mm(N)/18.5mm(T) |
|
Net Weight |
765g(N)/795g(T) |
|
TFT Panel |
A Level Industry Panel |
|
Touch Screen |
Industry Level 4 wire resistance Or without touch screen is optional. |
|
Backlight Parameter |
|
|
Backlight Type |
LED |
|
Brightness |
500 cd/m2 (Brightness can be adjustable in 100 levels.) |
|
Contrast |
500:1 |
|
Backlight life |
30,000 hours |
|
Viewing Angle |
70°/ 70°/ 50°/ 60° (L/R/U/D) |
|
Working Temperature |
-20°C ~ +70°C |
|
Working Humidity |
60°C, 90% |
|
Storage Temperature |
-30°C ~ +85°C |
|
Screen Mode |
Digital |
|
Performance Parameter |
|
|
CPU |
CortexM3 STM32F103 |
|
LCD Controller |
CPLD EPM240 |
|
Refresh Rate |
60 Hz |
|
Picture Switching Speed |
46 ms/picture (22 pictures/s) |
|
Flash Memory |
Standard 128m, Extension 4GB |
|
Memory Amount for picture |
236 images |
|
Interface |
RS232/ TTL UART Interface (Extend to RS485 so on.) |
|
Pictures downloading |
MiniUSB 2.0 (12Mbps) & SD card |
|
Voltage Range |
DC5.0V ~ 20V (typical value: 12V) |
|
Power |
5.0 W |
|
Test Report |
|
|
MTBF |
4,250,000 H |
|
Working Temperature |
-30 °C ~ +85°C |
|
Air Humidity |
60°C, 90% |
|
Continuous Vibration Testing |
10-55Hz, 1.5mm, 10G |
|
Impact Acceleration Testing |
6ms, 100G |
|
ESD Testing |
10KV |
|
Radiation Reliability Testing |
44W |
|
Main Size of TFT LCD Module |
|
|
Size |
Resolution |
|
3.5" |
320*240 |
|
4.3" |
480*272 |
|
5" |
640*480; 480*272; 800*480 |
|
5.6" |
640*480 |
|
7" |
800*480; 800*600; 1024*600 |
|
8" |
800*600; 800*480; 1024*768 |
|
9" |
800*480 |
|
10.4" |
800*600 |
|
12.1" |
800*600 |
|
15.1" |
1024*768 |
Other Models
|
Main Size of TFT LCD Module |
|
|
Size |
Resolution |
|
3.5" |
320*240 |
|
4.3" |
480*272 |
|
5" |
640*480; 480*272; 800*480 |
|
5.6" |
640*480 |
|
7" |
800*480; 800*600; 1024*600 |
|
8" |
800*600; 800*480; 1024*768 |
|
9" |
800*480 |
|
10.4" |
800*600 |
|
12.1" |
800*600 |
|
15.1" |
1024*768 |
Operation:
Easy to Use, there are only 3 steps you need to do.
1. Design a group of "Graphical User Interface" that you need.
2. Connect your equipment with our TFT-LCD Module by RS232, RS485 port or TTL Logic directly.
3. Write a control program for any MCU to work the TFT-Module via "Command Sets".
Working principle:
The TFT-LCD Module communicates with the main controller via the command, and then the main controller would control the machine to work after receiving the command.
Please note: The Main controller can be designed by engineer with Any MCU.
Software Description
We offer you 3 simple softwares to work with TFT-LCD Module.
1. Assistant software: To upload pictures and files into TFT-LCD Module, and demonstrate the commands.
2. Touch Control software: To create the control file.
3. Font software: To create the font file.
Warranty Period
1. The warranty period will last 3 years after delivery.
2. If there is any technical or quality problem in warranty period, we guarantee the goods will be replaced by new product unconditionally.

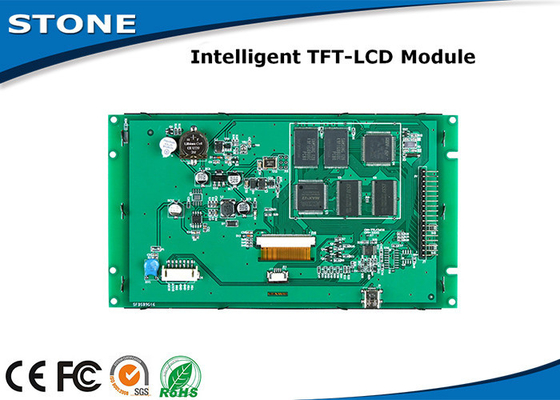

Product Picture:
