HD AUO lcd display interface Dual channel LVDS with touch screen 19'' 250 cd / m²

HD AUO lcd display interface Dual channel LVDS with touch screen 19'' 250 cd / m²
HD AUO lcd display interface Dual channel LVDS with touch screen 19'' 250 cd / m² HD AUO lcd display interface Dual channel LVDS with touch screen 19'' 250 cd / m²

Large Image :  HD AUO lcd display interface Dual channel LVDS with touch screen 19'' 250 cd / m² Get Best Price

Product Details:
Certification: RoHS,UL
Model Number: M190PW01 V.8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated, us$75-85/pc
Packaging Details: 8pcs/ctn, 14.35kg/ctn,ctn size 48*27*43cm
Delivery Time: within 1 week
Payment Terms: T/T, Western Union , paypal
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Size: 19 Inch Resolution: 1440*900
Brightness: 250 Cd/m² Contrast Ratio: 1000:1
Interface: LVDS (2 Ch, 8-bit),30pin Backlight: WLED
Operating Temperature: 0~50℃ View Angle: L/R/U/D 85/85/80/80
Highlight:

tft lcd panel

,

tft lcd screen

19'' 1440*900 AUO TFT LCD Module Desktop screen M190PW01 V.8



Quick Detail

  • 1440*900
  • wide viewing angle
  • 2 channels LVDS interface

Application

  • desktop screen
  • computer



Specifications



Module number M190PW01 V.8
Resolution 1440*900
Pixel Pitch 0.2835 x 0.2835  (mm)
Active Area 408.24(H) x 255.15(V)  (mm)
View angle R/L/U/D 85/85/80/80(Deg)
Mode TN
LCD Surface Anti-glare,3H
Number of Colors 16.7M
Electrical Interface Dual channel LVDS
Brightness 250 cd/m2
Contrast ratio 1000:1
Outline dimension 428(W) x 278(H) x 7.7(D)   (mm)
Gross weight 1450+-20g(Typ.)
Backlight WLED
LED Life (hrs.) 30K(Min.)
Power Consumption (W) 15.1(Typ.)
Panel Voltage (V) 5.0V
Response time 5  (ms)
Operate temperature 0-50 (°C)
Storage temperature -20-60  (°C)





Our Advantage



>>Quality ensurance

100% AUO original and brand new!

warranty :12 months !

You can enjoy the real panels directly from AUO factory;



>>Packing ensurance

all the products are in original package from original factory directly, and all the packages have labels andserial number!



>>Delivery ensurance

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !



>>After-Sale service

we have many years good experience on display solution.

any question, we will reply you within 12 hours.

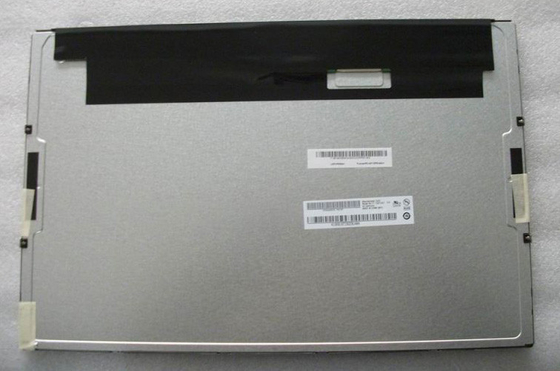

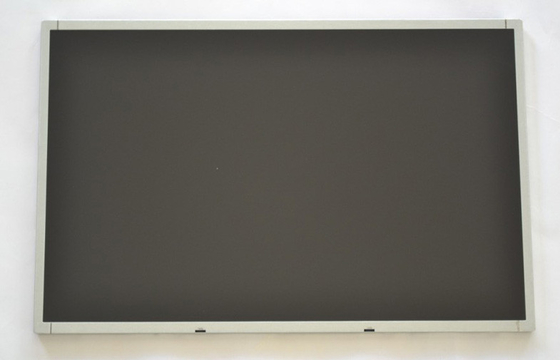

Product Show:



HD AUO lcd display interface Dual channel LVDS with touch screen 19'' 250 cd / m² 0
