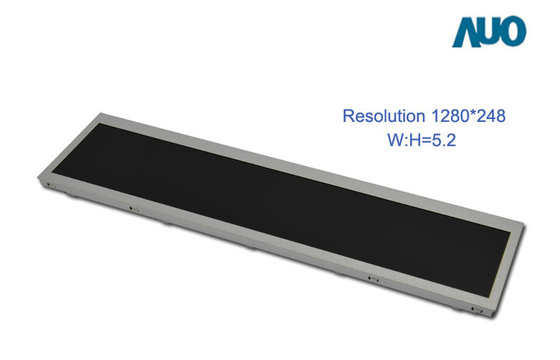

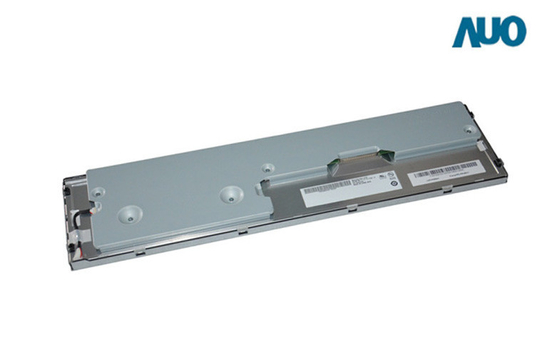

Ultra wide AUO color lcd display module , 15.1 inch Bar lcd with free view angle G151EVN01.0

Large Image : Ultra wide AUO color lcd display module , 15.1 inch Bar lcd with free view angle G151EVN01.0 Get Best Price

Product Details:

Certification:	RoHS,UL
Model Number:	G151EVN01.0

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiated, us$205/215/pc
Packaging Details:	30pcs/ctn, 24kg/ctn ,ctn size :478x281x488mm
Delivery Time:	within 1-2 week
Payment Terms:	T/T, Western Union , paypal
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Size:	15.1 Inch	Resolution:	1280*248
Brightness:	300 Cd/m²	Contrast Ratio:	2000:1
Interface:	LVDS (2 Ch, 8-bit)	Backlight:	WLED
Operating Temperature:	0~50℃	View Angle:	89/89/89/89 L/R/U/D
Highlight:	tft lcd panel , tft lcd screen

Ultra wide lcd module 15.1 inch Bar lcd G151EVN01.0

Quick Detail

1280*248
W:H=5.2
MVA display mode, same as IPS mode
free view angle
LVDS interface

Application

Mainly used in Subway
Taxi / bus / Aerospace
Game device

Specifications

Module number	G151EVN01 V0
Resolution	1280 x 3(RGB) x248
Pixel Pitch	0.294 x 0.294 (mm)
Active Area	376.32(H) x 72.91(V) (mm)
View angle	R/L/U/D 89/89/89/89(Deg)
Mode	MVA
LCD Surface	Anti-glare,3H
Number of Colors	16.7M
Electrical Interface	Dual LVDS
Brightness	300 cd/m2
Contrast ratio	2000:1
Outline dimension	396(W) x 100.8(H) x 17.3(D) (mm)
Gross weight	1000Typ.)
Backlight	WLED
LED Life (hrs.)	50K(Min.)
Power Consumption (W)	10.85W(Typ.)
Supply Voltage (V)	5.0V
Response time	20 (ms)
Operate temperature	0-50 (°C)
Storage temperature	-20-60 (°C)
