LVDS LCD Panel Module , 17inch AUO LCD Panel support Vedio play for advertising
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 17 Inch | Resolution: | 1280*1024 |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Contrast Ratio: | 1000:1 |
| Interface: | LVDS (2 Ch, 8-bit), 30PIN | Backlight: | WLED |
| Operating Temperature: | -0~60℃ | View Angle: | L/R/U/D 85/85/80/80 |
| Active Area: | 337.92*270.336 Mm | Weight: | 1.27kg |
| Highlight: | tft lcd panel,tft display module |
||
M170ETN01.1 , AUO 17'' TFT LCD module , good solution for advertising display
Quick Detail
- SXGA 1280X1024
- 16.7M color (RGB 6-bit+Hi-FRC data)
- 2 channels LVDS interface
- good quality with cheap price
HOT sell Solution:
M170ETN01.1+ controller board (LH-MP19) + remote controller + cables
Application
- Supermarket advertising displayer
Specifications
LCD module
| Model | M170ETN01.1 |
| Size | 17.0"(432mm) |
| Resolution (pixel) | 1280 × 3(RGB) × 1024 |
| Active Area(mm) | 337.920(H) × 270.336(V) |
| Pixel Pitch (mm) | 0.264(per one triad) × 0.264 |
| Display Mode | Normally White |
| Color Saturation (%) | 65 |
| Luminance Uniformity(%) | 80 |
| Support Colors | 16.7M colors (RGB 6-bits +Hi-FRC data) |
| Viewing Angle (R/L/U/L) | 85 / 85/80/80, wide view angle |
| Brightness (cd/m²) | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time (ms) | 5 ms |
| Power Consumtion (W) | 9.91 (Typ.) |
| LCD module : PDD (Typ.)=3 @ Black pattern,Fv=60Hz | |
| Backlight unit : PBLU (Typ.) =6.91 @Is=60mA | |
| Supply Voltage (v) | +5.0 typ. |
| Light Source | LED |
| Outline Dimension (mm) | 358.5(H) x 296.5(V) Typ. x10.3(D) Max. |
| Weight (g) | 1273(typ.) |
| Life Time(H) | 30,000(Min.) |
| Temperature Range | operating: 0 to +50 °C |
| storage: -20 to +60 °C | |
| Surpport color | 16.7M colors (RGB 6-bits +Hi-FRC data) |
| Surface Treatment | Anti-glare type, Hardness 3H |
| Electrical Interface | Dual Channel LVDS |
| ROHS Compliance | ROHS Compliance |
Controller Board Character:
| 1 | automatically loop play when starting up |
| 2 | support breakpoint memory function |
| 3 | support Time switch function |
| 4 | Support HDMI,VGA,AV input. |
| 5 | with subtitles flow show |
| 6 | support file updating via USB |
| 7 | support program upgrade via USB |
Products Show:

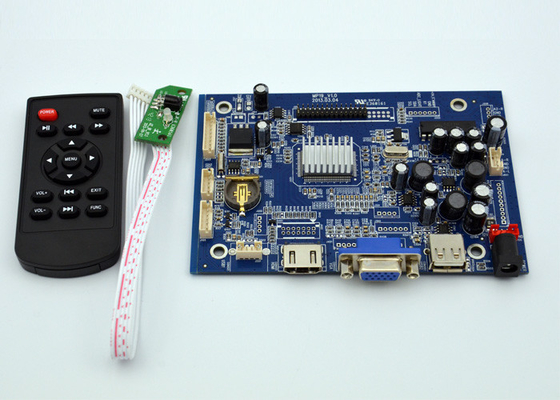

Controller board:
SD card reader drawing:

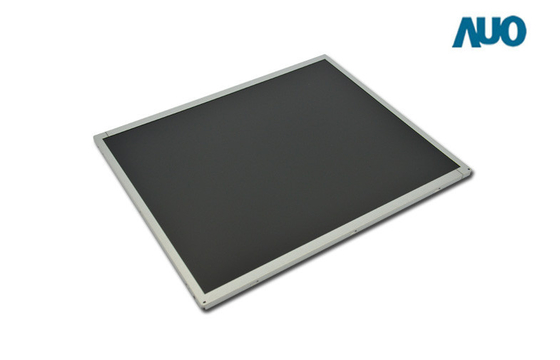

LCD screen:
advertising machine:
