Wide slim 10.1 inch Portable AUO lcd panel for personal computer , notebook
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 10.1 Inch | Resolution: | 1024*600 WSVGA |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Contrast Ratio: | 500:1 |
| Interface: | LVDS (1 Ch, 6/ 8-bit) | Backlight: | WLED |
| View Angle: | L/R/U/D 70/70/60/60 | Weight: | 180g |
| Operating Temperature: | -10~60℃ | ||
| Highlight: | AUO LCD screen,industrial lcd panel |
||
wide & slim screen 10.1 inch tft display WSVGA 1024*600 G101STN01.0
Quick Detail
- wide format screen 16:9
- 16.7M / 262K
- thickness 4.9mm
Application
- industrial application
- portable device
- personal computer
- notebook
Specifications
| Module number | G101STN01.0 |
| Resolution | 1024*600 WSVGA |
| Pixel Pitch | 0.1695 X 0.1695 (mm) |
| Active Area | 216.96(H) x 135.6(V) (mm) |
| View angle | R/L/U/D 70/70/60/60 (Deg) |
| Mode | TN |
| LCD Surface | Anti-glare,3H |
| Number of Colors | 262K colors / 16.7M |
| Electrical Interface | LVDS, 40pin |
| Brightness | 250 cd/m2 |
| Contrast ratio | 500:1 |
| Outline dimension | 229.46(H)x149.2(V)x4.96 (D)(mm) |
| Gross weight | 180g (Typ.) |
| Backlight | WLED |
| LED Life (hrs.) | 15K(Min.) |
| Power Consumption (W) | 3.4W(Typ.) |
| Supply Voltage (V) | 3.3V |
| Response time | 25 (ms) |
| Operate temperature | -10-60 (°C) |
| Storage temperature | -30-70 (°C) |

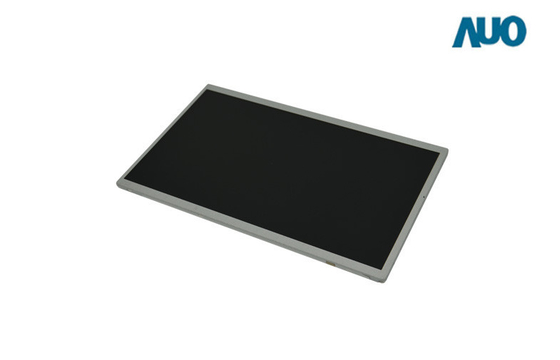

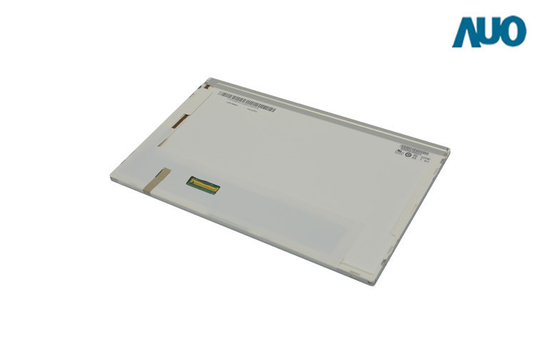

Picture Show:
