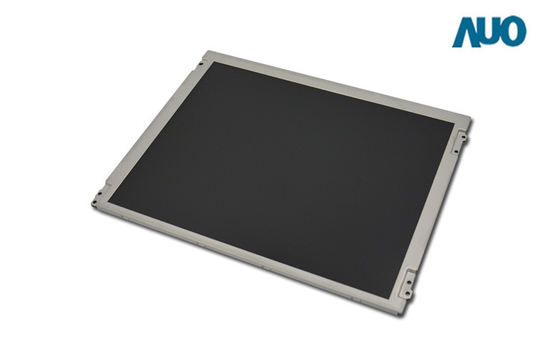

LED Backlight LCD panels 12.1 inch , Wide temperature lcd display for car G121SN01 V3
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 12.1 Inch | Resolution: | 800*600 |
|---|---|---|---|
| Brightness: | 450 Cd/m² | Contrast Ratio: | 700:1 |
| Interface: | LVDS (1 Ch, 6/8-bit) | Backlight: | WLED |
| Operating Temperature: | -30~85℃ | View Angle: | L/R/U/D 80/80/65/75 |
| Backlight Life: | 50k Hours (min) | ||
| Highlight: | AUO LCD module,AUO LCD screen |
||
SVGA 800*600 12.1 inch industrial lcd tft type wide temperature G121SN01 V4
Quick Detail
- SVGA 800*600
- Wide temperature
- Long life LED backlight life
- compatible with G121SN01 V3
Application
- Industrial application
Specifications
| Module number | G121SN01 V4 |
| Resolution | 800x600 |
| Pixel Pitch | 0.3075 x 0.3075 (mm) |
| Active Area | 246.0(H)x184.5(V) (mm) |
| View angle | R/L/U/D 80/80/65/75 (Deg) |
| Mode | TN |
| LCD Surface | Anti-glare,3H |
| Number of Colors | 262K/16.2M |
| Electrical Interface | Digital, LVDS(1ch, 6/8 bit) |
| Brightness | 450 cd/m2 |
| Contrast ratio | 700:1 |
| Outline dimension | 279.0(H)x209.0(V)x9.0(T) (mm) |
| Gross weight | 580g (Max.) |
| Backlight | WLED |
| LED Life (hrs.) | 50K |
| Power Consumption (W) | 6.7(Typ.) |
| Supply Voltage (V) | 3.3V |
| Response time | 35 (ms) |
| Operate temperature | -30-85 (°C) |
| Storage temperature | -30-85 (°C) |
| Operate humidity | 5-95 (%RH) |
| Storage humidity | 5-95 (%RH) |
Our Advantage
>>Quality ensurance
100% AUO original and brand new!
warranty :12 months !
You can enjoy the real panels directly from AUO factory;
>>Packing ensurance
all the products are in original package from original factory directly, and all the packages have labels andserial number!
>>Delivery ensurance
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
we have many years good experience on display solution.
any question, we will reply you within 12 hours.
Picture Show:
