High brightness lcd flat panel display TTL FOR Digital photo frame AND MP4 PMP

Large Image : High brightness lcd flat panel display TTL FOR Digital photo frame AND MP4 PMP Get Best Price

Product Details:

Certification:	RoHS
Model Number:	AT070TN83 V.1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiated
Packaging Details:	Innolux original package
Delivery Time:	within 1 week
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000pcs per week

Contact Now

Detailed Product Description

Size:	7 Inch	Resolution:	800x480
Brightness:	300 Cd/m2	Contrast Ratio:	500:1
View Angle(L/R/U/D):	70/70/50/70(Deg)	Interface:	Parallel RGB
Operating Temperature:	-20~70℃	Storage Temperature:	-30-80℃
Highlight:	innolux lcd screen , car lcd monitor

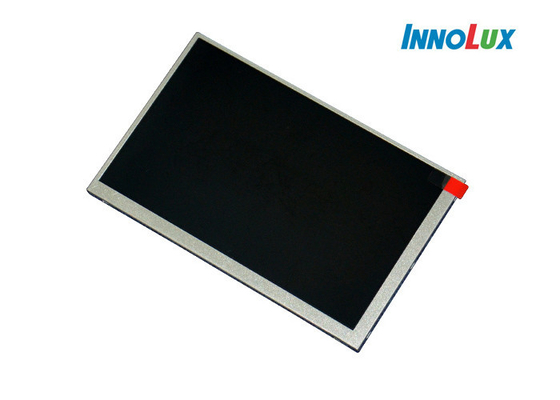

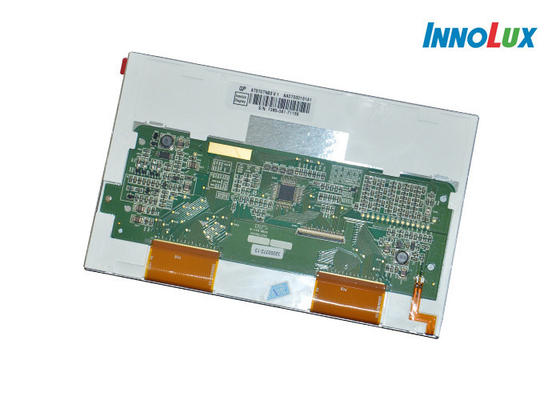

Innolux 7 inch tft lcd AT070TN83 V.1

Specifications:

Module number	AT070TN83 V.1
Type	a-Si TFT LCD
Size	7 inch
Brand	Innolux
Resolution	800X3(RGB)X480
Width:Height	15:9
Pixel pitch	0.1905(W)X0.1905(H) mm
Active Area	155.3 (W)X94.3 (H) mm
View angle	R/L/U/D 70/70/50/70(Deg)
Pixel Arrangement	RGB Vertical Stripe
Surface Treatment	Anti-glare
Electrical Interface	TTL
Brightness	300(cd/m2)
Contrast ratio	500:1
Outline dimension	165(W)X104(H)X5.5(D) mm
Backlight	LED
Response time	25(ms)
Display mode	TN, Normally White, Transmissive
Operate temperature	-20-70(°C)
Storage temperature	-30-80(°C)
Display Colors	262k
Power Consumption	3.325W(Typ.)
Power Supply Voltage	3.3v(Typ.)
Backlight lifetime	20k hrs(Min.)
Applications	Portable DVD Digital photo frame MP4 PMP etc common use
