TFT type Tianma 400nits High brightness LCD panel module 10.4 inch for KIOSK , ATM

TFT type Tianma 400nits High brightness LCD panel module 10.4 inch for KIOSK , ATM
TFT type Tianma 400nits High brightness LCD panel module 10.4 inch for KIOSK , ATM TFT type Tianma 400nits High brightness LCD panel module 10.4 inch for KIOSK , ATM

Large Image :  TFT type Tianma 400nits High brightness LCD panel module 10.4 inch for KIOSK , ATM Get Best Price

Product Details:
Certification: RoHS , CE
Model Number: TM104SDH01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD20-100 / pc
Packaging Details: Tianma original package
Delivery Time: 1-4 weeks
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10000pcs per week
Contact Now
Detailed Product Description
Size: 10.4 Inch Resolution: 800x600
Brightness: 400 Cd/m2 Contrast Ratio: 400:1
View Angle(L/R/U/D): 70/70/60/70 Interface: LVDS 6 Bit
Storage Temperature: -30~80℃ Display Mode: TN, Normal White
LVDS Pin: 20 Pin
Highlight:

tianma lcd display

,

lcd resistive touch screen

TFT type Tianma 10.4 inch  lcd module TM104SDH01 ,  resolution800x600 brightness 400nits







Specifications



Module number

TM104SDH01

Resolution

800(RGB) x 600

Pixel Pitch

0.264x0.264 (mm)

Active Area

211.2x 158.40 (mm)

View angle

R/L/U/D 70/70/60/70(Deg)

Mode

TN

LCD Surface

Hard coating, 3H

Number of Colors

262k

Electrical Interface

LVDS 1ch 6 bit

Brightness

400cd/m2

Contrast ratio

400:1

Overall dimension

236X176.9X5.6(mm)

Backlight

WLED

Supply Voltage (V)

3.3V

Backlight lifetime

30K hours

Operate temperature

-20-70 (°C)

Storage temperature

-30-80 (°C)

Package

Tianma original package;
25pcs/carton;
Carton size: 530x350x250mm;
Weight: 10.3kgs




Applications



- KIOSK, ATM, general application



Product range:  2.2" to 24" .



According to customers' various requests, we can match all accessories which inclusive of driver board, touch screen, LED backlight & LVDS cables.



Every lcd panel have been inspected by original manufacturer QC before ship out , we ensure it's conform to inspection standard.

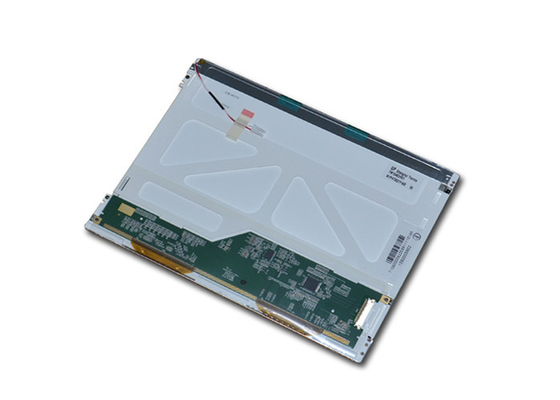

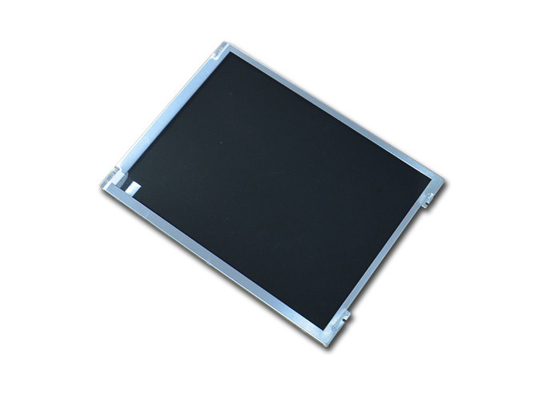

Picture Show:





TFT type Tianma 400nits High brightness LCD panel module 10.4 inch for KIOSK , ATM 0
