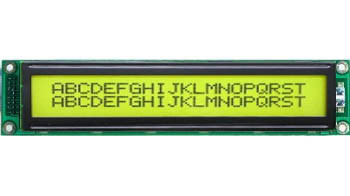

Basic 20 x 2 Character LCD Display with yellow - green 5.0V display and controller S6A0069
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Character Format: | 20x2 Characters | Driver Method: | 1/16 Duty, 1/5 Bias |
|---|---|---|---|
| Display Type: | Transflective | Display Mode: | Positive |
| Viewing Angle: | 6:00 | Operating Temperature: | -10 ~ 60 Degree |
| Controller/Driver: | S6A0069 OR Equivalent | Backlight Type: | No |
| VDD: | 5V | ||
| Highlight: | character lcd module,character lcd panel |
||
Basic 20x2 Character LCD Display , yellow-green 5.0V display with controller S6A0069
Quick Detail:
1. Character format: 20 X 2 Characters
2. Driver method: 1/16 duty, 1/5 bias
3. Display type: Tranflective
4. Viewing angle: 6:00
5. Operating temperature: -10°C ~ 60 °C
6. Backlight type: no
8. VDD: 5.0V
Applications:
Office Automation : printer , scanner, Home Appliances , Consumer Products...etc
Specifications:
|
Item number |
2002A |
|
Active area |
14.88 X 20.4mm |
|
External dimension |
180.0 X 40.0 X 14.3 mm |
|
Display Type |
Yellow-green, transflective , positive |
|
View Direction |
6:00 |
|
Operation temperature |
-10°C ~ 60°C |
|
Storage temperature |
-20°C ~ 70°C |
|
Power Supply |
5.0 V |
|
Drive Method |
1/16Duty , 1/5Bias |
|
Controller |
S6A0069 or Equivalent |
|
Interface |
Parallel interface |
|
Backlight type |
no backlight |
Drawing
