Full view angle 12.1 inch Chimei LCD Panel for digital camera digital G121I1-L01
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 12.1 Inch | Resolution: | 1280x800 |
|---|---|---|---|
| Brightness: | 400 Cd/m2 | Contrast Ratio: | 1000:1 |
| View Angle(L/R/U/D): | 88/88/88/88 | Interface: | LVDS |
| Operating Temperature: | -10~70℃ | Storage Temperature: | -20-80℃ |
| Highlight: | Chimei LCD display,Industrial lcd screen |
||
Chimei 12.1 inch MVA tft LCD
Specifications:
| Module number | G121I1-L01 |
| Type | a-Si TFT LCD |
| Size | 12.1 inch |
| Brand | CMI |
| Resolution | 1280X800 |
| Width:Height | 16:10 |
| Pixel Pitch | 0.204×0.204(mm) |
| Active Area | 265.10×167.20(mm) |
| View angle | R/L/U/D 88/88/88/88 (Deg) |
| Mode | MVA, normally Black, transmissive |
| LCD Surface | Anti-glare, Hard coating(3H) |
| Number of Colors | 262K/16.2M(6 bit/ 6 bit + FRC) |
| Electrical Interface | LVDS(1ch, 6/8 bit) |
| Brightness | 400 cd/m2 |
| Contrast ratio | 1000:1 |
| Outline dimension | 278x184x10mm(Typ.) |
| Panel weight | 455g(Typ.) |
| Backlight | WLED |
| Supply Voltage (V) | 3.3V |
| Response time | 15/10(ms) |
| Operate temperature | -10-70 (°C) |
| Storage temperature | -20-80 (°C) |
| Application |
Special for industrial grade use.
|
We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.
Product Features:
-- WLED backlight & Backlight replaceable & LED Driver integrated;
-- Wide screen;
-- Long backlight life 50K(Min.) hrs;
-- Nearly full view angle;
-- 6/8 bit optional;
-- Anti-glossy Surface.

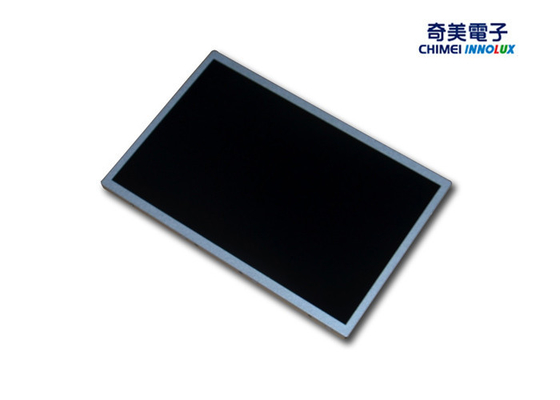

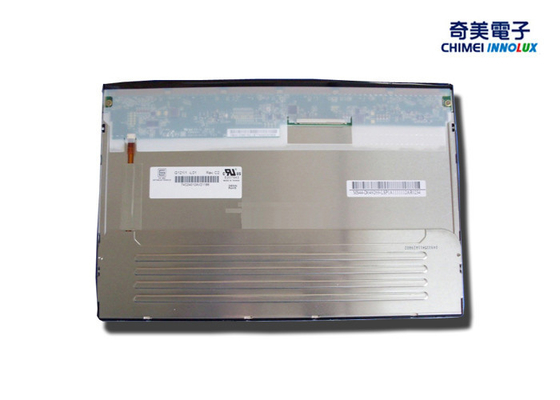

Product Show:
