Serial port Graphic LCD Display Module 128 * 32 Dots for electric power , aerospace
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Dispaly Mode: | Graphic, STN | Dots: | 128*32 |
|---|---|---|---|
| Controller IC:: | ST7565R | Drive Method:: | 1/33 DUTY,1/6 BIAS |
| Active Area:: | 49.89*12.45mm | Interface: | Serial Port |
| Operating Temperature: | -20~70℃ | Polarizer Type:: | Transmissive,negative |
| Highlight: | serial lcd display,graphic lcd module |
||
STN type Graphic LCD Display white on blue
Specification:

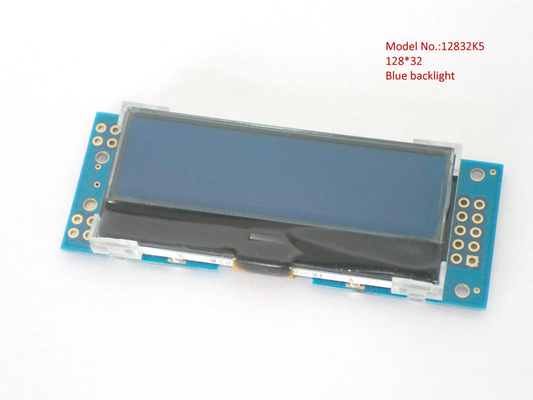

| Model NO.: | 12832K5 |
| Outline Size: | 70.5*26mm |
| View Area: | 52*14.5 mm |
| Active Area: | 48.89*12.45 mm |
| Display Type: | STN, graphic |
| Polarizer Type: | Transflective,Positive |
| View Direction: | 6:00 O'Clock |
| VDD | +3.3V |
| Drive Method: | 1/323Duty; 1/6 Bias |
| Controller IC: | ST7565R |
| interface: | Serial port |
| Backlight type: | blue |
| Backlight Supply Voltage: | +3.3V |
| Operating Temp: | –20ºC TO +70ºC |
| Storage Temp: | –30ºC TO +80ºC |

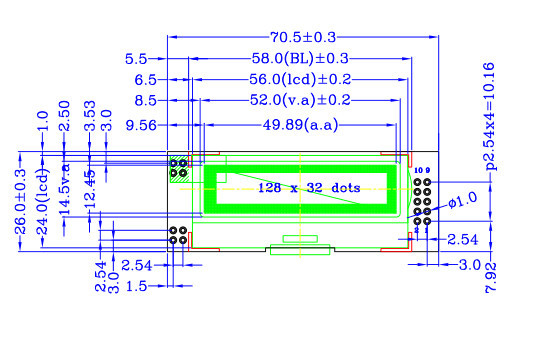

Drawing:
workshop:
Our factory is founded in Year 2009, located in Nanjin China. Our thousands of products cover LCD / LCM/ COG including 122*32,128*64,128*128,160*160,192*64,240*128,320*240 etc
We can also customize special needs for customers. Those products have been widely used in medical, military, electric power, industrial control, aerospace, electronics, instrumentation, numerical control machine tools, automotive, communications and other fields
