LH-DM37F LCD driver board support image reverse and boot screen for video door phone
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | VGA, HDMI | Support Resolution: | 1920*1200 |
|---|---|---|---|
| Output: | Dual Chanel LVDS | Dimention: | 125.5X83.5X15mm |
| Operating Temperature: | -20~70 | Storage Temperature: | -40~150 |
| Warranty: | 12 Month | Technology Support: | Available |
| Highlight: | lcd display driver board,lcd screen driver board |
||
HDMI , VGA , AV input LCD driver board LH-DM37F support image reverse
Advantages:
*Max resolution:1920*1200
*Support SYS:NTSC M, NTSC-J,NTSC 4.43, PAL(B,D,G,H,M,N,I,Nc),3D image filtering
*12V DC,(propose to use adapter exceed 48W )
*OSD display control
*Support boot screen
*Support signal infrared remote control
*Support image reverse
Specifications:
|
Item No.: |
LH-DM37F |
|
Max resolution: |
1920x1200 |
|
Dimention: |
125.5x83.5x15mm |
|
Power input: |
12V |
|
Input interface: |
HDMI , DVI , AV , 2USB , 2CVBS |
|
Output interface: |
LVDS, CVBS |
|
Language: |
Chinese,English... 8 languages |
|
Optional : |
OSD Display control |
|
Operating Temperature: |
-20~70℃ |
|
Storage Temperature: |
-40~150℃
|
Our most popular driver board, very suit for industrial application.
Good quality and fast delivery , and ensure continous supply in coming 3 years.

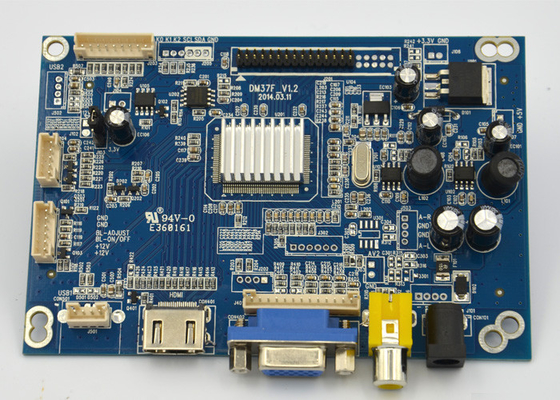

Product show:
